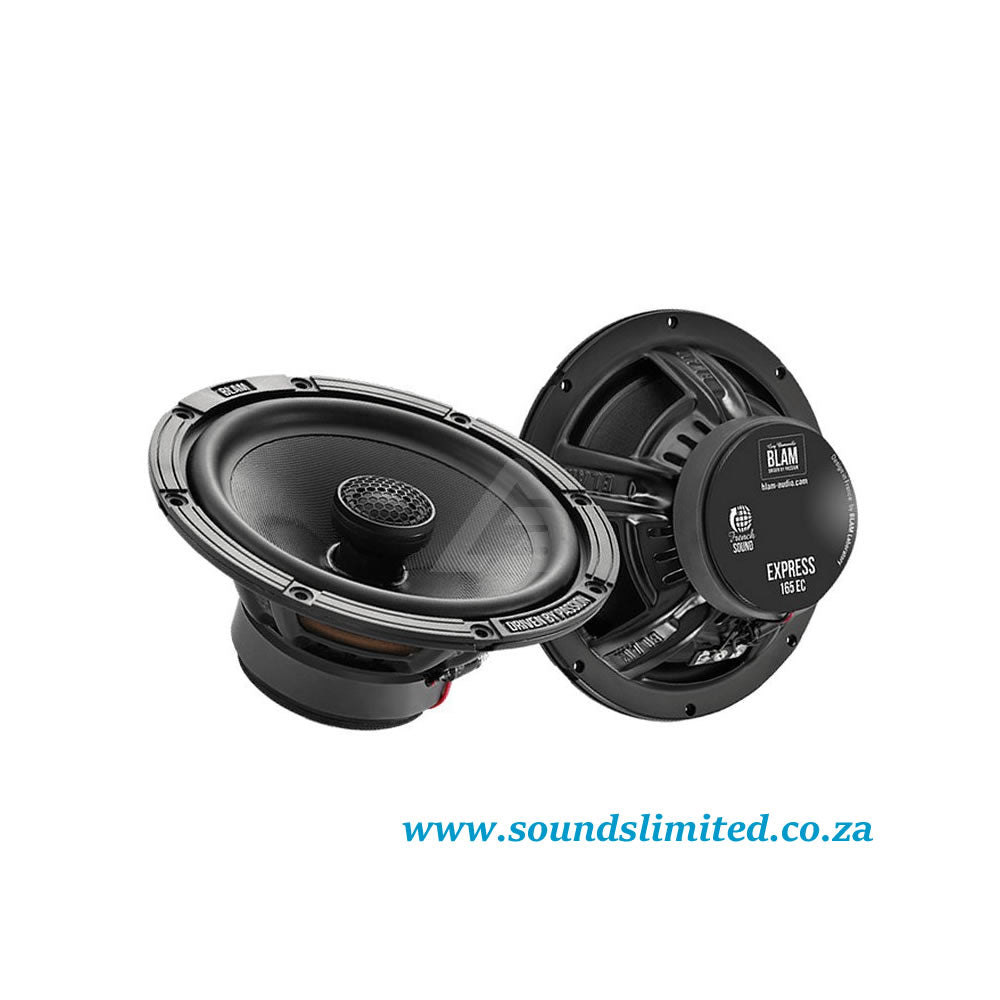

Blam Express 165EC 165mm Coaxial speakers

This kit is composed of two 165 mm (6.5’’) woofers with two coaxial 20 mm (3/4”) soft dome tweeters and two integrated 6 dB/octave high pass crossovers.

High sensitivity coaxial speaker system
165 mm woofer
Max power 120 W – Nominal power 60 W
Frequency response 65 Hz – 25 kHz
Sensitivity 93.5 dB – Impedance 2 Ω

Composition

2 Woofers:
Specific basket in stamped steel
Treated and tropicalized cellulose pulp cone
Butyl rubber surround
Long life “Conex” damper
25 mm (1’’) voice coil with kapton former
80 mm x 15 mm (3.1’’ x 0.6’’) motor assembly (Y30)
Thick magnetic circuit (5 mm)

20 mm (3/4’’) high quality soft dome coaxial tweeter
N38 neodymium motor

6 dB/octave high-pass integrated crossover

Supplied accessories:
Mounting screws
User’s manual
