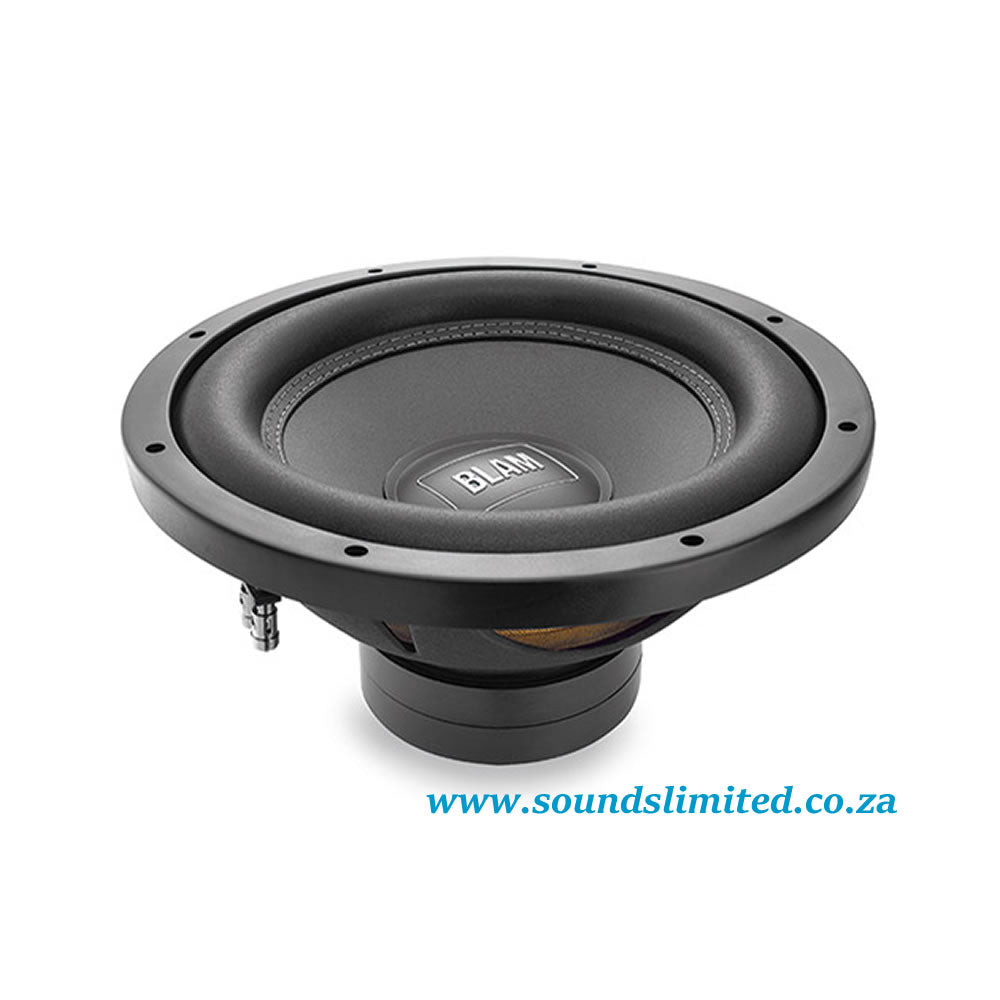

Blam Relax R12 300 mm (12’’) subwoofer
Blam Relax R12 300 mm (12’’) subwoofer
Call for price
Taxes included.
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.
R12 300 mm (12’’) subwoofer
300 mm (12’’) subwoofer
Maximum power 500 W / Nominal power 250 W
Frequency response: 30 Hz à 500 Hz
Sensitivity 94 dB
Impedance 2 Ω
Composition
Steel basket
Reinforced cellulose fiber cone
Foam surround
Cotton damper
50 mm voice coil on aluminium former
134 mm x 23 mm motor assembly
Machined extended T yoke
Optimized for use in a 20L to 40L closed enclosure
Supplied Accessories:
Mounting screw
User manual
Recommended sealed enclosure :
| Internal Volume Vb | F -3 dB | Boost |
| 20 L | 54 Hz | 1.3 dB at 92 Hz |
| 30 L | 51 Hz | 0.7 dB at 93 Hz |
| 50 L | 49 Hz | 0.2 dB at 114 Hz |
Recommended bass reflex enclosure :
| Internal Volume Vb | Port Internal Ø | Port Internal lenght | F -3 dB | Boost |
| 30 L | 10 cm | 30 cm | 41 Hz | 4.4 dB at 70 Hz |
| 50 L | 10 cm | 26 cm | 32 Hz | 2.7 dB at 60 Hz |
