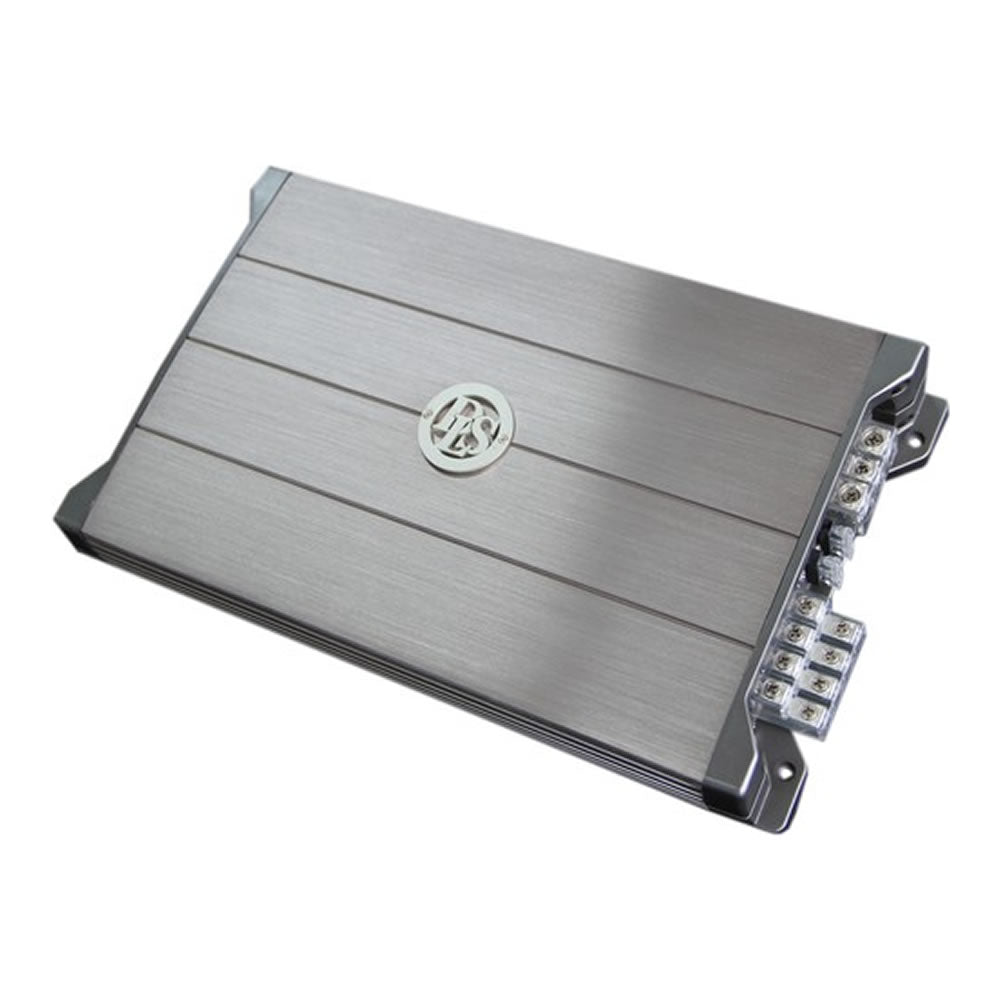

DLS Audio P40 - 4 x 150 Watt amplifier
DLS Audio P40 - 4 x 150 Watt amplifier
Regular price
R 4,999.00
Regular price
Sale price
R 4,999.00
Taxes included.
Quantity
Couldn't load pickup availability
DLS Audio P40 Amplifier
4 x 150 Watt amplifier
P40 is a small and powerful amplifier with power output of 4 x 150 Watts peak power, and in mono bridge-connection, it puts out all of 2 x 200 Watts.
- Built-in/switchable low pass and high pass filters.
- Bass EQ @ 50 Hz: + 6dB / + 12 dB.
- Built-in protection circuits shut down the amplifier in the event of overloads.
- Hi level input with Auto start
Use it for a front system and a subwoofer.
SQ tuned in England!
| Specifications: |
| Number of channels | 4 |
| Amplifier class | AB |
| Peak power | 4 x 150 Watt |
| Output power in 2 ohm | 4 x 100 Watt |
| Output power in 4 ohm | 4 x 70 Watt |
| Mono bridge mode 4 ohm | 2 x 200 Watt |
| Damping factor | >80 |
| S/N ratio, A-weighted | >90 dB |
| Frequency range | 10 Hz - 30 kHz |
| Input sensitivity | 0,25 - 5 Volt |
| Input impedance | 22 kohm |
| Input impedance, high level | 47 ohm |
| High level input with auto start | Yes |
| Remote bass level control | No |
| Low level output | No |
| Remote phase shift control | No |
| Grand bass filter | Bass EQ @ 50 Hz: +6db / +12 dB |
| Power consumption (idle) | 0,5 A |
| Power consumption (max) | 50 A |
| Rec. power cable | 16 sq mm ( 5 AWG) |
| Fuses | 2 x 25 A |
| Dimension (W x D x H) | 189 x 322 x 46 mm (7,44" x 12,67" x 1,81") |
| Weight | 3 kg |
| EAN Bar code | 7331644079408 |
