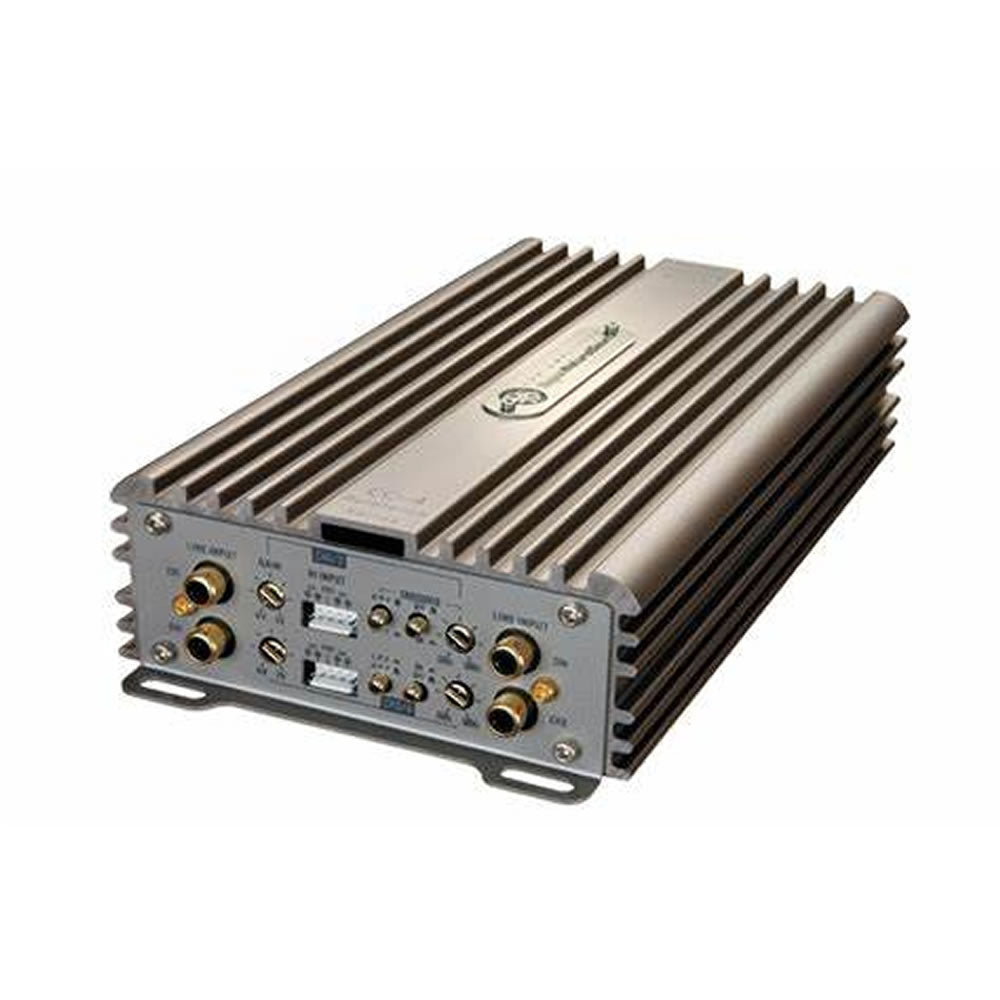

DLS Audio Reference CC-4 - 4 x 70 Watt amplifier
DLS Audio Reference CC-4 - 4 x 70 Watt amplifier
Call for price
Taxes included.
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.
DLS Audio Reference
CC-4 4 x 70 Watt amplifier
CC-4 is a small and powerful amplifier with power output of 4 x 70 Watts RMS, and in mono bridge-connection, it puts out all of 2 x 140 Watts. A good sounding amplifier for both amateurs and professionells.
- Built-in/switchable low pass and high pass filters.
- Damping factor >250
- Signal to noise ratio, A-weighted: 110 dB
- THD at 5W, 1 kHz. <0,02%
- Built-in protection circuits shut down the amplifier in the event of overloads.
- Hi level input with Auto start
Use it for a front system and a subwoofer.
SQ tuned in England!
 |
Specifications |  |
| Number of channels | 4 |
| Amplifier class | AB |
| Output power in 2 ohm | 4 x 70 Watt |
| Output power in 4 ohm | 4 x 50 Watt |
| Mono bridge mode 4 ohm | 2 x 140 Watt |
| Damping factor | >250 |
| S/N ratio, A-weighted | >110 dB |
| Frequency range | 10 Hz - 50 kHz |
| Input sensitivity | 1 - 4 Volt |
| Input impedance | 6 kohm |
| Input impedance, high level | 45 ohm |
| High level input with auto start | Yes |
| Remote bass level control | No |
| Low level output | No |
| Remote phase shift control | No |
| Filters channel A & B | HP 50 - 500 Hz, LP 50 - 500 Hz |
| Filters channel C & D | HP 50 - 500 Hz, LP 50 - 500 Hz |
| Power consumption (idle) | 0,5 A |
| Power consumption (max) | 40 A |
| Rec. power cable | 16 sq mm ( 5 AWG) |
| Fuses | 2 x 20 A |
| Dimension (W x D x H) | 129 x 250 x 51 mm (5,07" x 9,85" x 2") |
| Weight | 1,8 kg |
| EAN Bar code | 7331644329404 |
|
Article number(s) | |
CA-CC4
