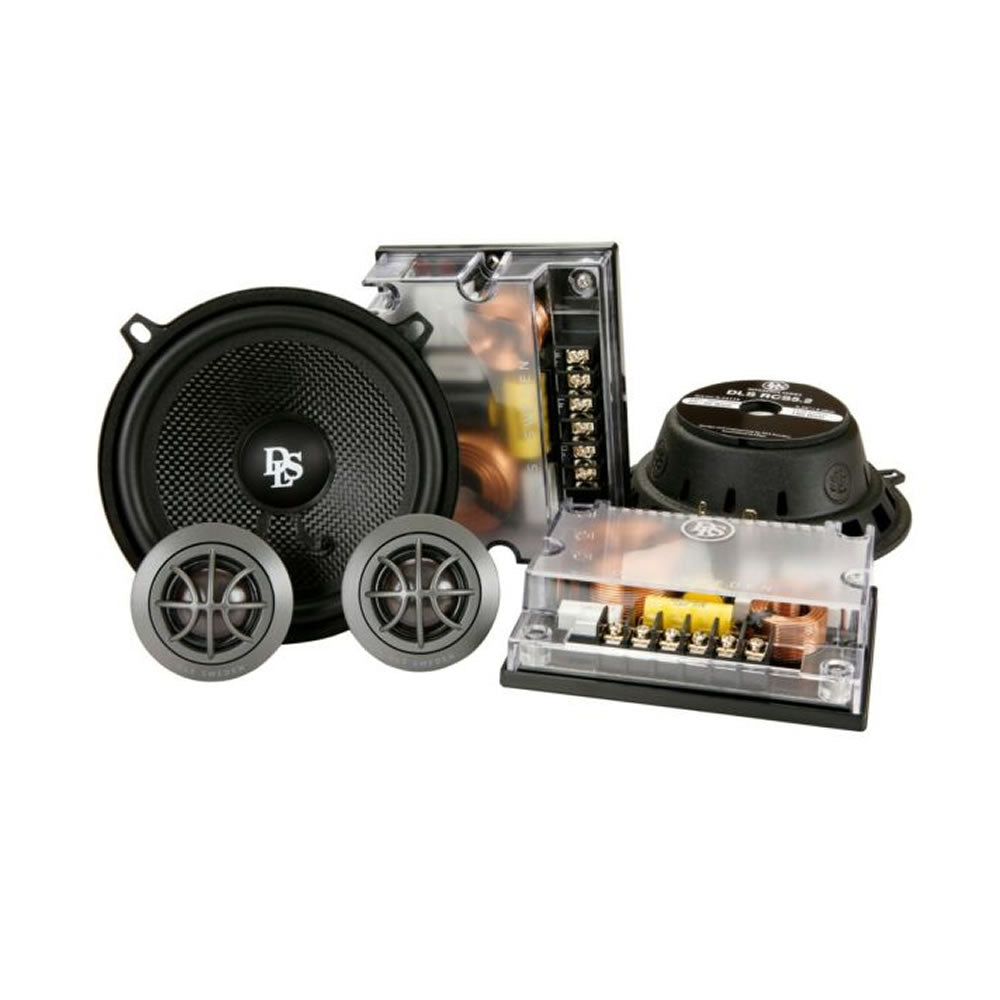

DLS Audio Reference RCS5.2
2-way kit, 5,25 inches
Reference series RCS5.2 is a 13 cm (5,25") 2-way component with good sound qualitys. The cone is made of wowen fibre glass with a rubber surround.
A small installation depth (43 mm)makes them fit most vehicles.
- Filter boxes with selectable tweeter level.
- 25 mm silk dome tweeter with copper rings.
- Grilles are included.
 |
Specifications |  |
| Woofer size | 13 cm (5,25") | |||||||||||||||||||||||||||
| Tweeter | RC25, 25 mm (1") silk dome tweeter with copper rings | |||||||||||||||||||||||||||
| Power handling capacity | 50 W RMS / 90 W max / 180 W peak power | |||||||||||||||||||||||||||
| Impedance | 4 ohm | |||||||||||||||||||||||||||
| Frequency range | 70 - 22.000 Hz | |||||||||||||||||||||||||||
| Sensitivity | 86 dB (1W/1m) | |||||||||||||||||||||||||||
| Outer diameter of woofer | 130 mm (5,25") | |||||||||||||||||||||||||||
| Cone material | Wowen fibre glass | |||||||||||||||||||||||||||
| Magnet size | 70 mm (3,15"), hybrid FE / Nd | |||||||||||||||||||||||||||
| Crossover | Box filter with 12/12 dB slope (LP/HP) | |||||||||||||||||||||||||||
| Crossover point (Hz) | 5500 Hz | |||||||||||||||||||||||||||
| Size of filter box | 125 x 95 x 34 mm | |||||||||||||||||||||||||||
| Mounting depth | 43 mm ( 1,7") | |||||||||||||||||||||||||||
| Mounting hole | 123 mm (4,84") | |||||||||||||||||||||||||||
| T/S parameters single V/C |
|
|||||||||||||||||||||||||||
| EAN Bar code | 7331644821502 |
|
Article number(s) | |
| CK-RCS5.2 |
