DLS Audio

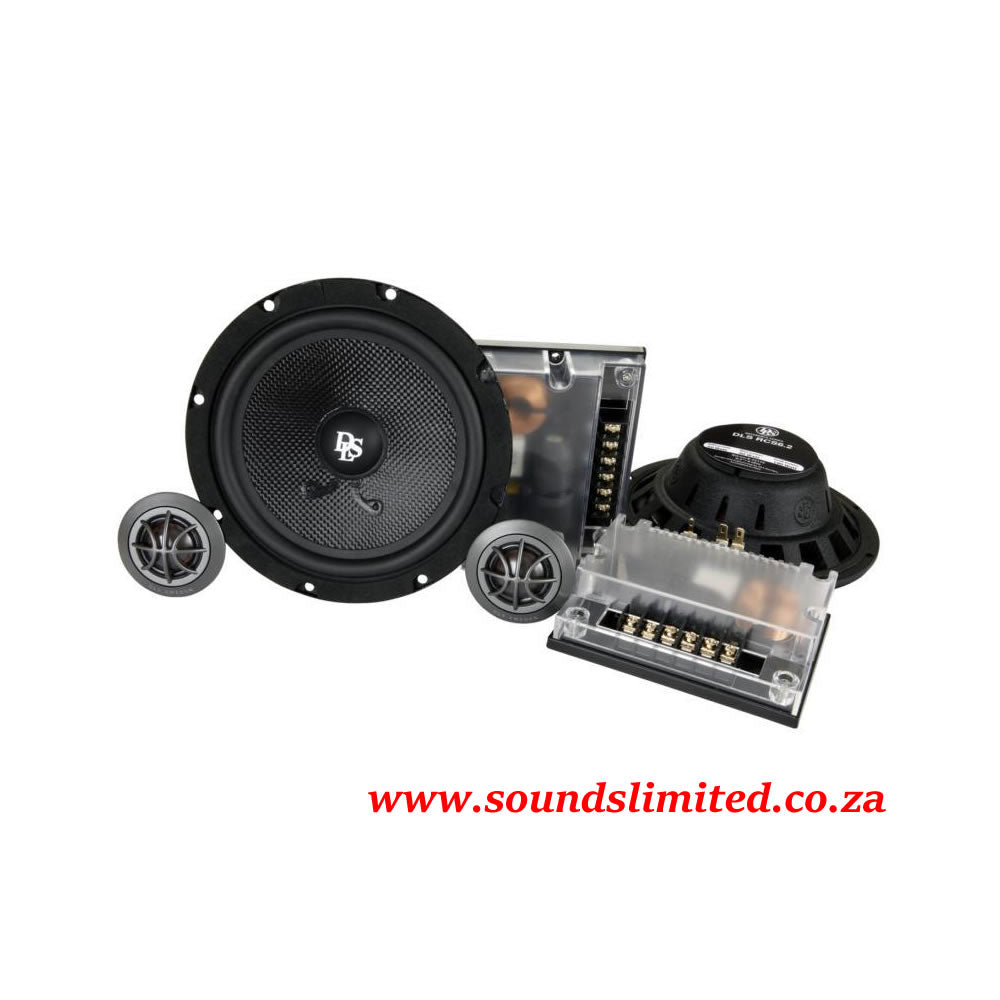

DLS Audio Reference RCS6.2 - 2-way kit, 6,5 inches
DLS Audio Reference RCS6.2 - 2-way kit, 6,5 inches
Call for price
Taxes included.
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.
DLS Audio Reference RCS6.2
2-way kit, 6,5 inches
Reference series RCS6.2 is a 16,5 cm (6,5") 2-way component. The cone is made of wowen glass fibre with rubber surround giving this speaker set a good sound.
A small installation depth (45 mm)makes them fit most vehicles.
- Filter boxes with selectable tweeter level.
- 25 mm silk dome tweeter with copper rings.
- Grilles are included.
 |
Specifications |  |
| Woofer size | 16,5 cm (6,5") | |||||||||||||||||||||||||||
| Tweeter | RC25, 25 mm (1") silk dome tweeter with copper rings | |||||||||||||||||||||||||||
| Power handling capacity | 50 W RMS / 90 W max / 180 W peak power | |||||||||||||||||||||||||||
| Impedance | 4 ohm | |||||||||||||||||||||||||||
| Frequency range | 55 - 22.000 Hz | |||||||||||||||||||||||||||
| Sensitivity | 86 dB (1W/1m) | |||||||||||||||||||||||||||
| Outer diameter of woofer | 165 mm (6,5") | |||||||||||||||||||||||||||
| Cone material | Wowen glass fibres | |||||||||||||||||||||||||||
| Magnet size | 80 mm (3,15"), hybrid FE / Nd | |||||||||||||||||||||||||||
| Crossover | Box filter with 6/12 dB slope (LP/HP) | |||||||||||||||||||||||||||
| Crossover point (Hz) | 5500 Hz | |||||||||||||||||||||||||||
| Size of filter box | 125 x 95 x 34 mm | |||||||||||||||||||||||||||
| Mounting depth | 45 mm ( 1,77") | |||||||||||||||||||||||||||
| Mounting hole | 146 mm (5,75") | |||||||||||||||||||||||||||
| T/S parameters single V/C |
|
|||||||||||||||||||||||||||
| EAN Bar code | 7331644821601 |
|
Article number(s) | |
| CK-RCS6.2 |
