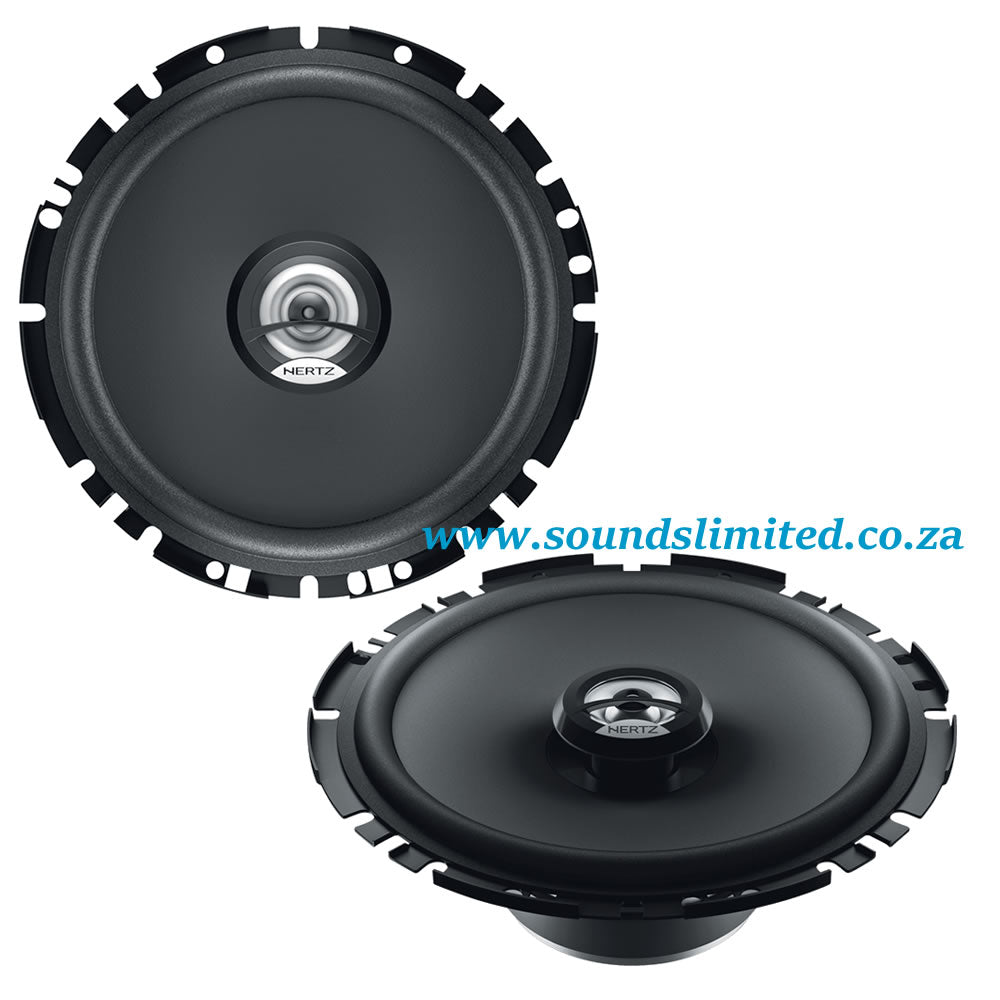

With its 51 mm (2,0 in.) maximum depth Hertz DCX 170.3 car audio coaxial, is a “flat” model optimized for installation in a vehicle’s door and/or other reduced spaces, without giving up on acoustic reproduction quality. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround, a copper voice coil wound on a Conex former and painstaking care in its build ensures performance surpassing other components within the same category.

Technical Specs

Component	Two way coaxial
Size mm (in.)	170 (6.7)
Power Handling - Continuous W	50
Power Handling - Peak W	100
Impedance Ohm	4
Depth mm (in.)	51 (2.0)
Woofer Voice Coil Ø mm (in.)	25 (1.0)
Frequency Response Hz	60 ÷ 21k
Woofer Magnet size D x d x h mm (in.)	80 x 32 x 10 (3.1 x 1.3 x 0.4)
Weight of one speaker kg (lb.)	0,56 (1.23)
Woofer Magnet	High density flux ferrite
Tweeter Magnet	Neodymium
Cone	Water-repellent pressed paper
Dome	PEI

Electro-acoustic Specs

D mm	133
Re Ohm	3,6
Fs Hz	85
Vas I	11,3
Mms g	8,8
Cms mm/N	0,4
BL T*m	3,7
Qts	0,95
Qes	1,21
Qms	4,39
Spl dB	93
