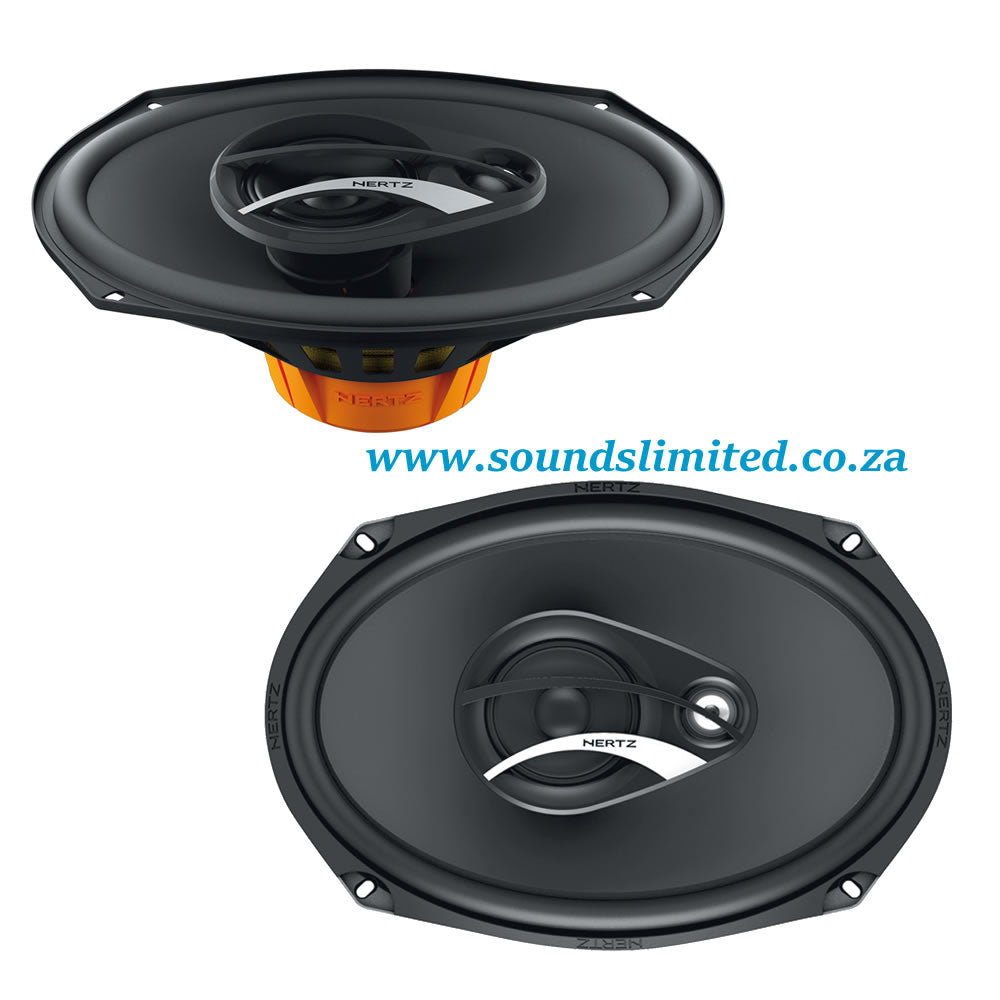

Hertz DCX 690.3 Dieci series car audio coaxials use an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange, and a PEI dome tweeter. The result is linearity, wide dispersion, and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels. An authentic 3-way coax capable of reproducing a wide frequency spectrum.

Technical Specs

Component	Three way coaxial
Size mm (in.)	(6 x 9)
Power Handling - Continuous W	90
Power Handling - Peak W	180
Impedance Ohm	4
Depth mm (in.)	98 (3.9)
Woofer Voice Coil Ø mm (in.)	25 (1.0)
Frequency Response Hz	45 ÷ 21k
Woofer Magnet size D x d x h mm (in.)	80 x 40 x 15 (3.1 x 1.6 x 0.6)
Weight of one speaker kg (lb.)	0,95 (2.09)
Woofer Magnet	High density flux ferrite
Tweeter Magnet	High density flux ferrite

Electro-acoustic Specs

D mm	170
Re Ohm	3,4
Fs Hz	66
Vas I	25,7
Mms g	16,5
Cms mm/N	0,35
BL T*m	3,9
Qts	1,12
Qes	1,55
Qms	4,06
Spl dB	93
