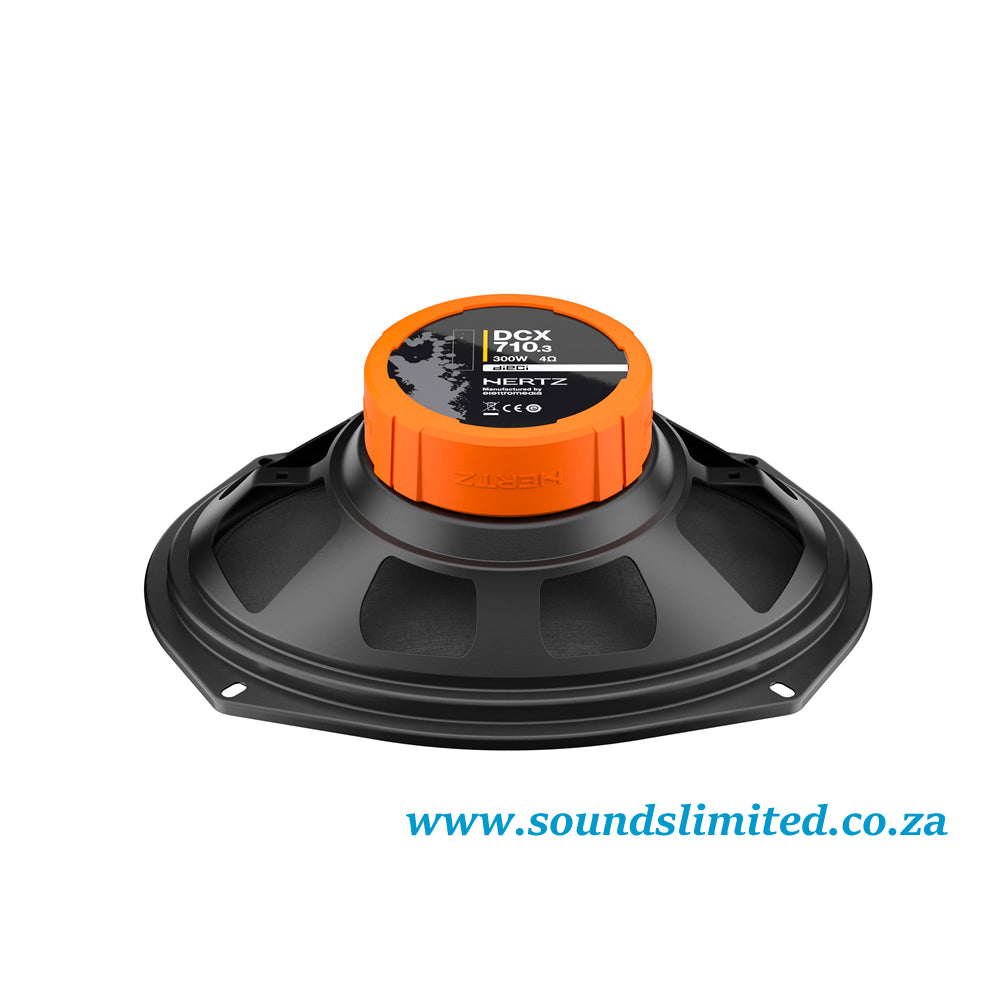

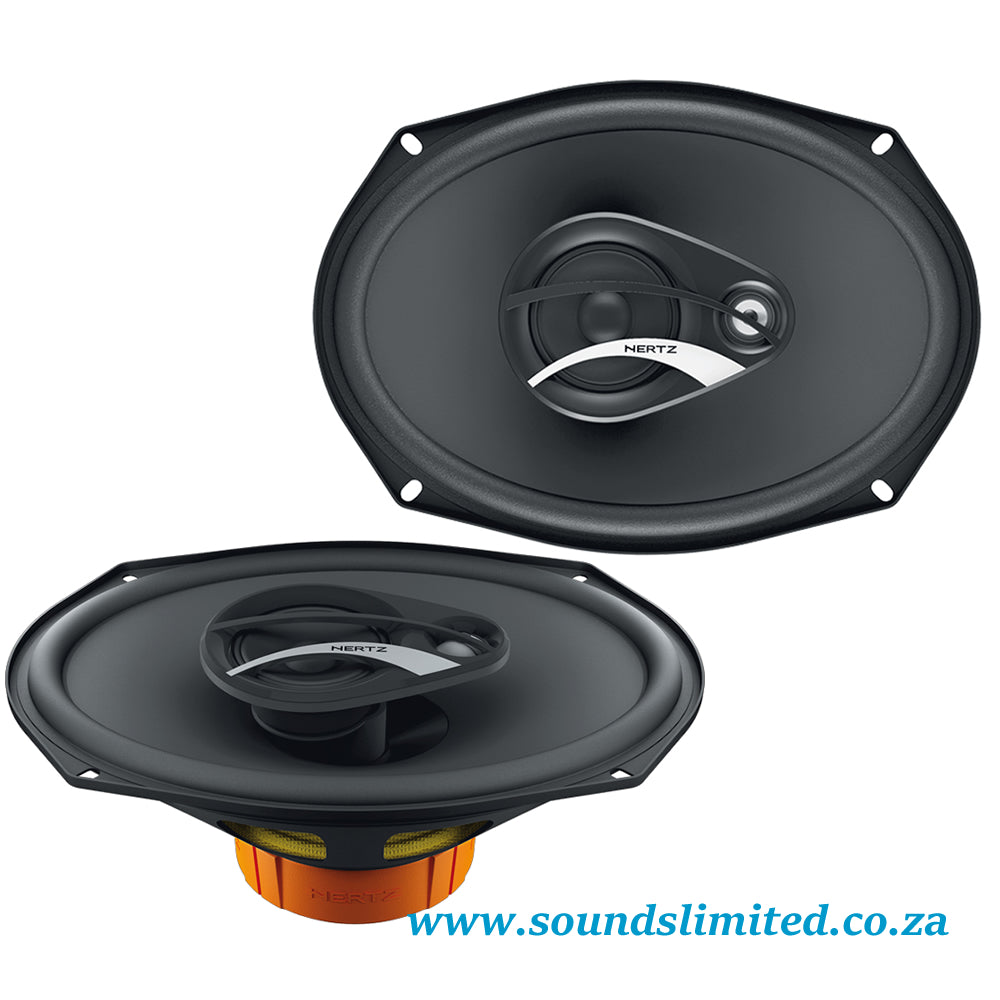

Hertz DCX 710.3 7 x 10 Three Way Coaxial 300 W 4 Ohm
Hertz DCX 710.3 7 x 10 Three Way Coaxial 300 W 4 Ohm
Regular price
R 1,899.00
Regular price
Sale price
R 1,899.00
Taxes included.
Quantity
Couldn't load pickup availability
Hertz DCX 710.3 7 x 10 Three Way Coaxial 300 W 4 Ohm
Hertz DCX 710.3 Dieci series car audio coaxials use an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange, and a PEI dome tweeter. The result is linearity, wide dispersion, and extraordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels. An authentic 3-way coax capable of reproducing a wide frequency spectrum.
| Component | Three way coaxial |
| Size mm (in.) | (7 x 10) |
| Power Handling - Continuous W | 150 |
| Power Handling - Peak W | 300 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 110 (4.3 in.) |
| Woofer Voice Coil Ø mm (in.) | 25 (1.0) |
| Frequency Response Hz | 40 ÷ 21k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 32 x 17 (3.5 x 1.3 x 0.7) |
| Weight of one speaker kg (lb.) | 1,35 (2.97) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | High density flux ferrite |
| Cone | Water-repellent pressed paper |
| Dome | Water-repellent pressed paper |
| D mm | 181 |
| Re Ohm | 3,3 |
| Fs Hz | 69 |
| Vas I | 23,0 |
| Mms g | 22,0 |
| Cms mm/N | 0,24 |
| BL T*m | 4,9 |
| Qts | 1,06 |
| Qes | 1,31 |
| Qms | 5,50 |
| Spl dB | 93 |
Physical Specs
| A1 | 253 mm | 10 in. |
| A2 | 181 mm | 7.1 in. |
| B1 | 238 mm | 9.4 in. |
| B2 | 167 mm | 6.6 in. |
| C | 110 mm | 4.3 in. |
| D | 84 mm | 3.3 in. |
