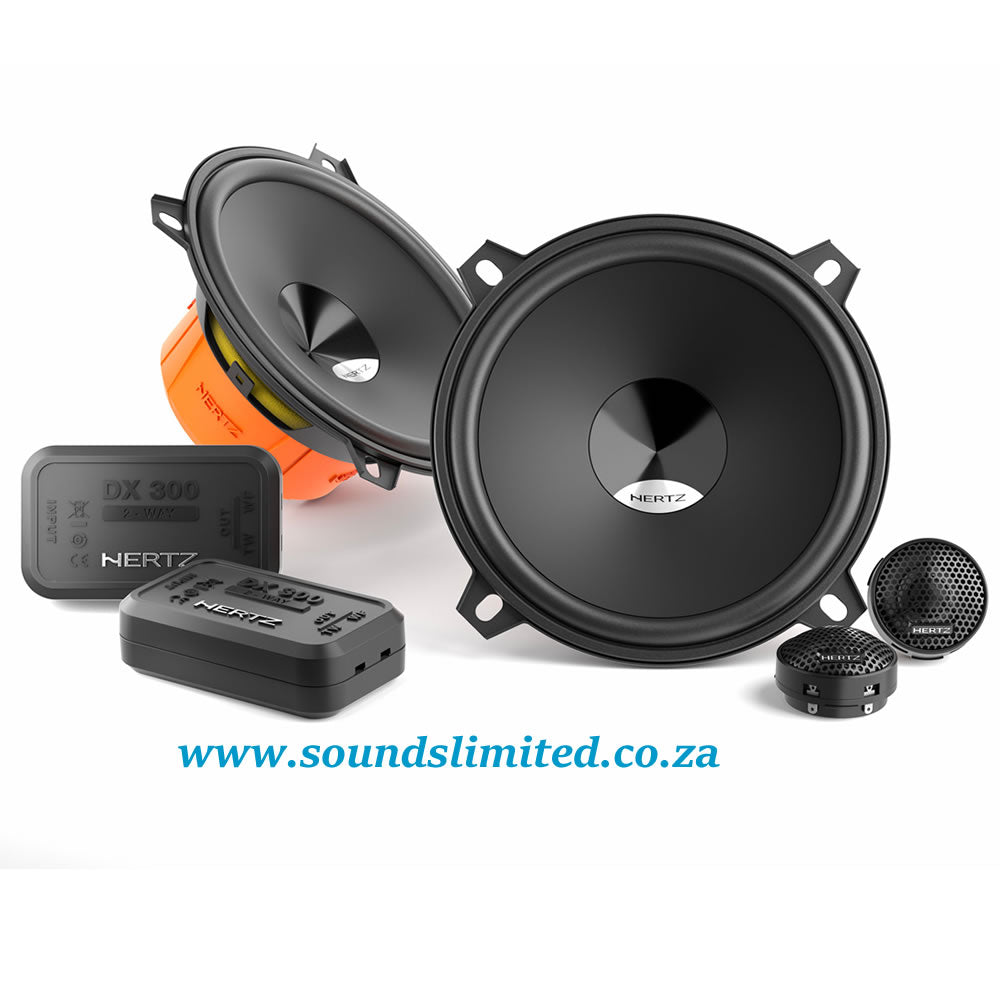

Hertz DSK130.3 130mm Two Way System 120 W 4 Ohm Split System

Hertz DSK130.3 130mm Two Way System 120 W 4 Ohm Split System

Regular price R 1,650.00
Regular price Sale price R 1,650.00
Sale Sold out
Taxes included.
Quantity

Hertz DSK130.3 130mm Two Way System 120 W 4 Ohm Split System

Hertz Dieci series car audio speaker systems let you realize a high-quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high-frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.
Component Two way system
Size mm (in.) 130 (5)
Power Handling - Continuous W 60
Power Handling - Peak W 120
Impedance Ohm 4
Woofer Voice Coil Ø mm (in.) 25 (1)
Sensitivity dB SPL 93
Frequency Response Hz 60 ÷ 23k
Crossover Cut off 3,5 kHz @ 12 dB Oct.
Crossover Type Hi Pass
Weight of one component - Woofer 0,53 (1.17)
Weight of one component - Tweeter kg (lb) 0,03 (0.07)
Weight of one component - Crossover kg (lb) 0,16 (0.35)
Technical Specs
D mm 112
Re Ohm 3,3
Fs Hz 81
Le mH 0,26
Vas I 7
Mms g 7,4
Cms mm/N 0,51
BL T*m 3,9
Qts 0,76
Qes 0,93
Qms 4,3
Spl dB 93
Electro-acoustic Specs
Physical Specs

DSK130.3

A 130 mm 5 in.
A3 151 mm 5.9 in.
B 116 mm 2.3 in.
C 58 mm 2.3 in.
D 52 mm 2.0 in
