Hertz DSK165.3 165mm Two Way Split System 160 W 4 Ohm Dieci

Hertz DSK165.3 165mm Two Way Split System 160 W 4 Ohm Dieci

Regular price R 1,749.00
Regular price Sale price R 1,749.00
Sale Sold out
Taxes included.
Quantity

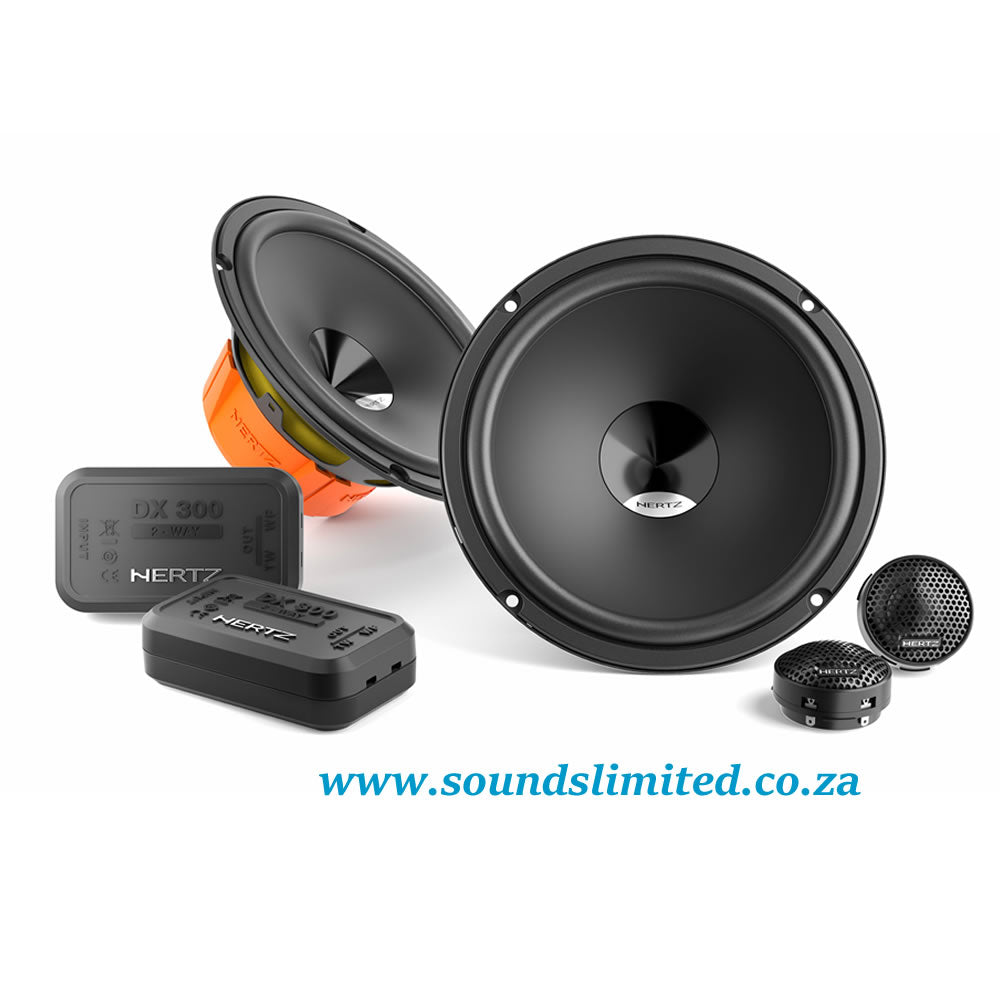

Hertz DSK165.3 165mm Two Way Split System 160 W 4 Ohm

Dieci car audio systems let you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.
Two way system
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 80
Power Handling - Peak W 160
Impedance Ohm 4
Woofer Voice Coil Ø mm (in.) 25 (1)
Sensitivity dB SPL 93
Frequency Response Hz 50 ÷ 23k
Crossover Cut off 3,5 kHz @ 12 dB Oct.
Crossover Type Hi Pass
Weight of one component - Woofer 0,74 (1.63)
Weight of one component - Tweeter kg (lb) 0,03 (0.07)
Weight of one component - Crossover kg (lb) 0,16 (0.35)
Technical Specs
D mm 135
Re Ohm 3,3
Fs Hz 67
Le mH 0,26
Vas I 14,6
Mms g 11,3
Cms mm/N 0,51
BL T*m 4,2
Qts 0,81
Qes 0,90
Qms 7,59
Spl dB 93
Electro-acoustic Specs
Physical Specs

DSK165.3

A 165 mm 6.5 in.
B 144 mm 5.7 in.
C 72 mm 2.8 in.
D 64 mm 2.5 in.
