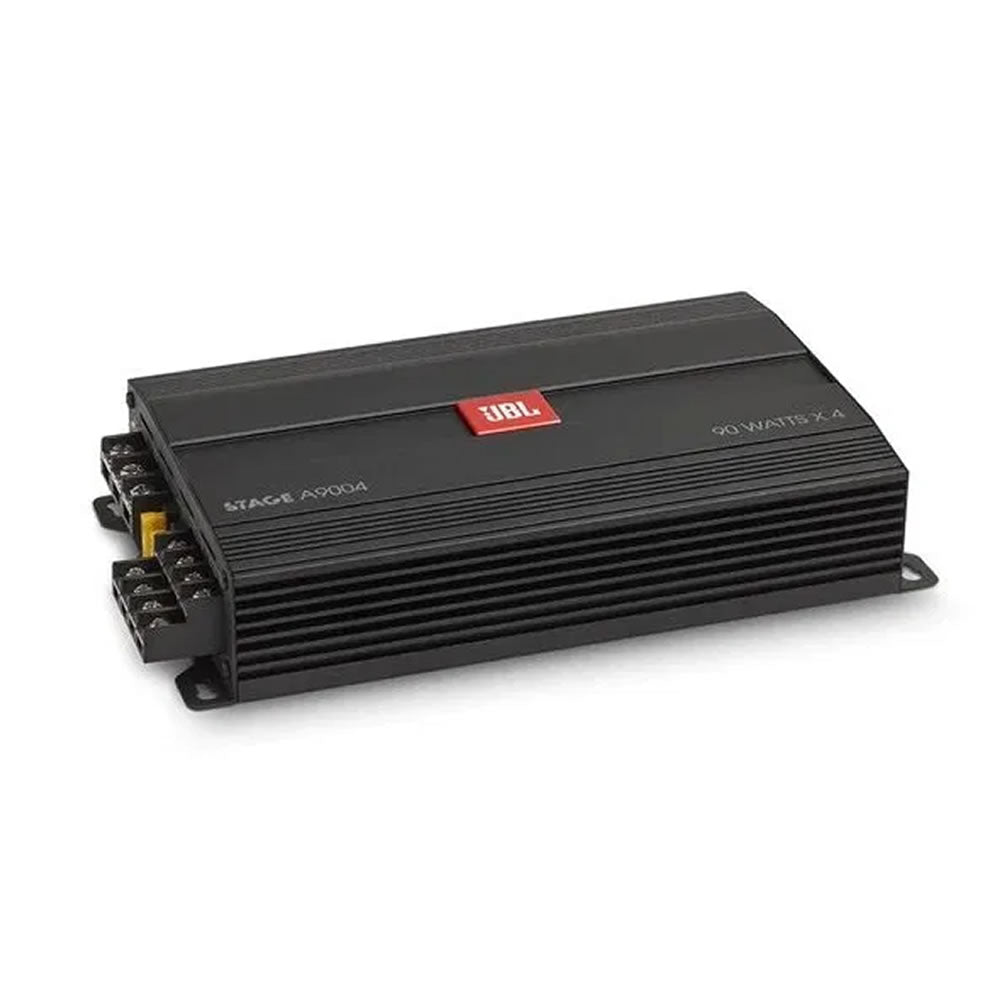

JBL Stage A9004 Amplifier 90W x 4

JBL Stage A9004 Amplifier 90W x 4

POWER YOU WILL FEEL AT YOUR CORE

JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwoofers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable—and once they turn on, they'll make a transducer sit up and sing.

General Specifications

Power Output 90Wx4@4ohms

Frequency Response 20-20kHz±1dB

THD @ ROP1%

Input Sensitivity 0.2V-5V

High Pass Filter, Variable 32 -320Hz

Low Pass Filter, Variable 32 -320Hz

Bass EQ @ 45Hz0-12dB

Protection DC, OVP, UVP, OCP, OTP
