Kicker

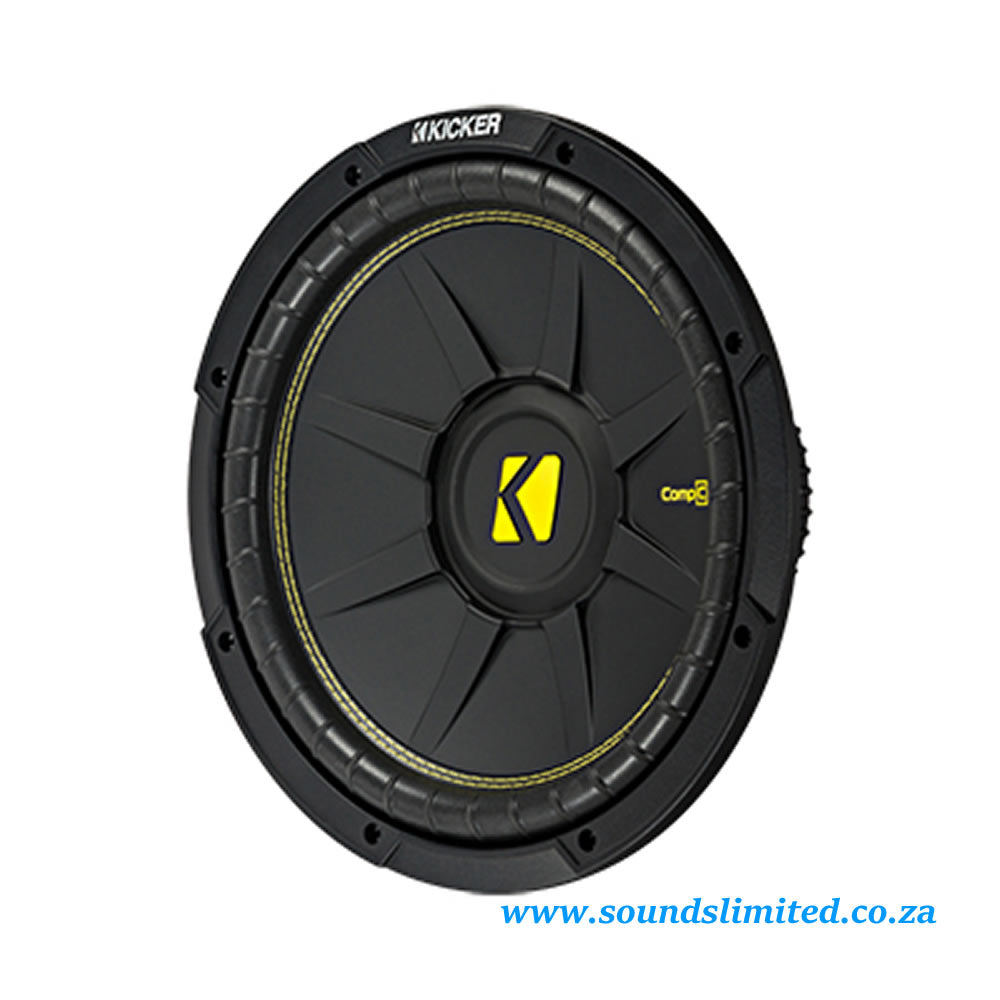

Kicker 12" CompC 4 Ohm SVC 44CWCS124
Kicker 12" CompC 4 Ohm SVC 44CWCS124
Couldn't load pickup availability
Perimeter venting keeps the air free-flowing around the motor structure. With a KICKER sub that doesn’t overheat, you get high-performance bass that keeps the music pounding.
Features:
- Four-Ohm Voice Coil
- Injection-Molded Polypropylene Cone
- Perimeter Venting for Thermal Management
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The CompC 12-Inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.
| Thiele/Small Parameters |
| 44CWCS124 T/S Parameters |
| Size (IN.,CM) |
| 12, 30 |
| Impedance (OHMS) |
| 4 SVC |
| Recommended Amplifier Power (watts RMS) |
| 300 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 600 |
| Sensitivity (dB 1w/1m) |
| 88.3 |
| Frequency Response (Hz) |
| 27-500 |
| Mounting Depth (in, cm) |
| 5-3/8, 13.6 |
| Mounting Cutout (in, cm) |
| 11, 27.9 |
| Min Sealed Box Vol (cu. ft, L) |
| 1.25, 35.4 |
| Max Sealed Box Vol (cu. ft, L) |
| 3.5, 99.1 |
| Min Vented Box Vol (cu. ft, L) |
| 1.75, 49.6 |
| Max Vented Box Vol (cu. ft, L) |
| 2.25, 63.7 |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
