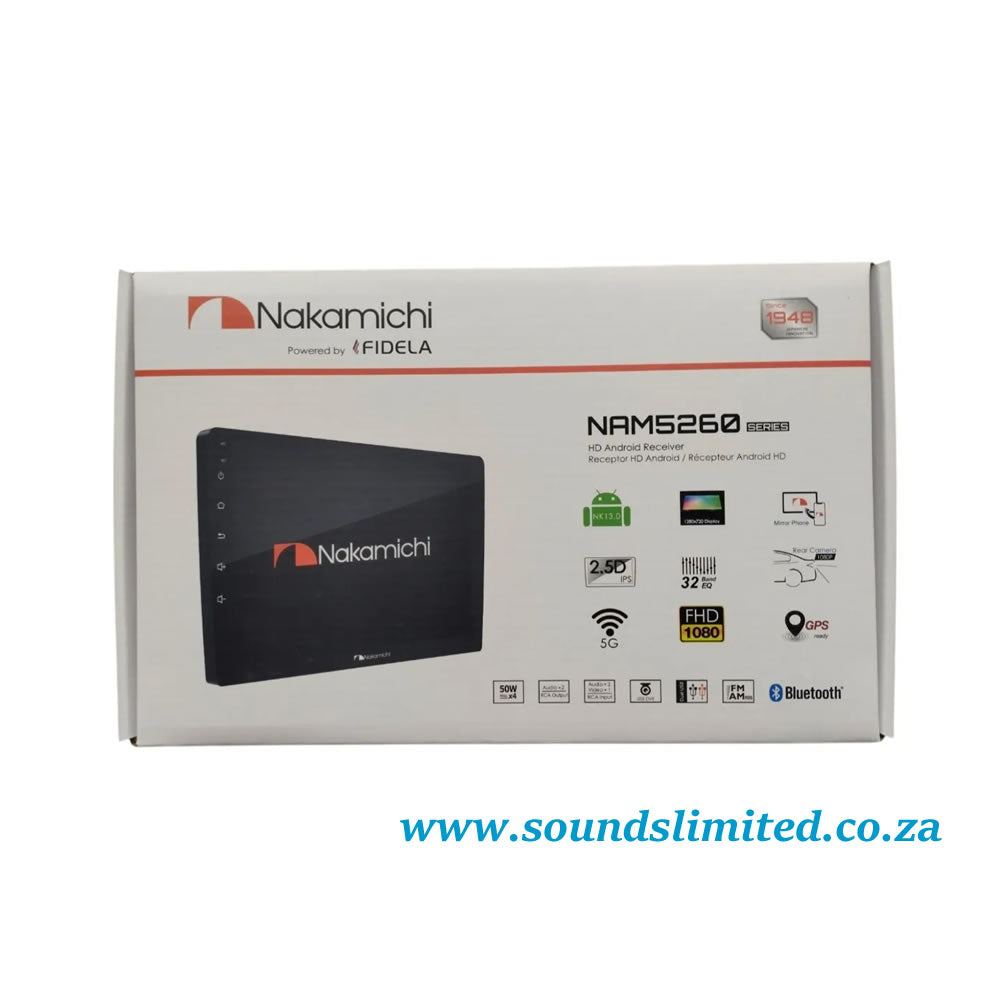

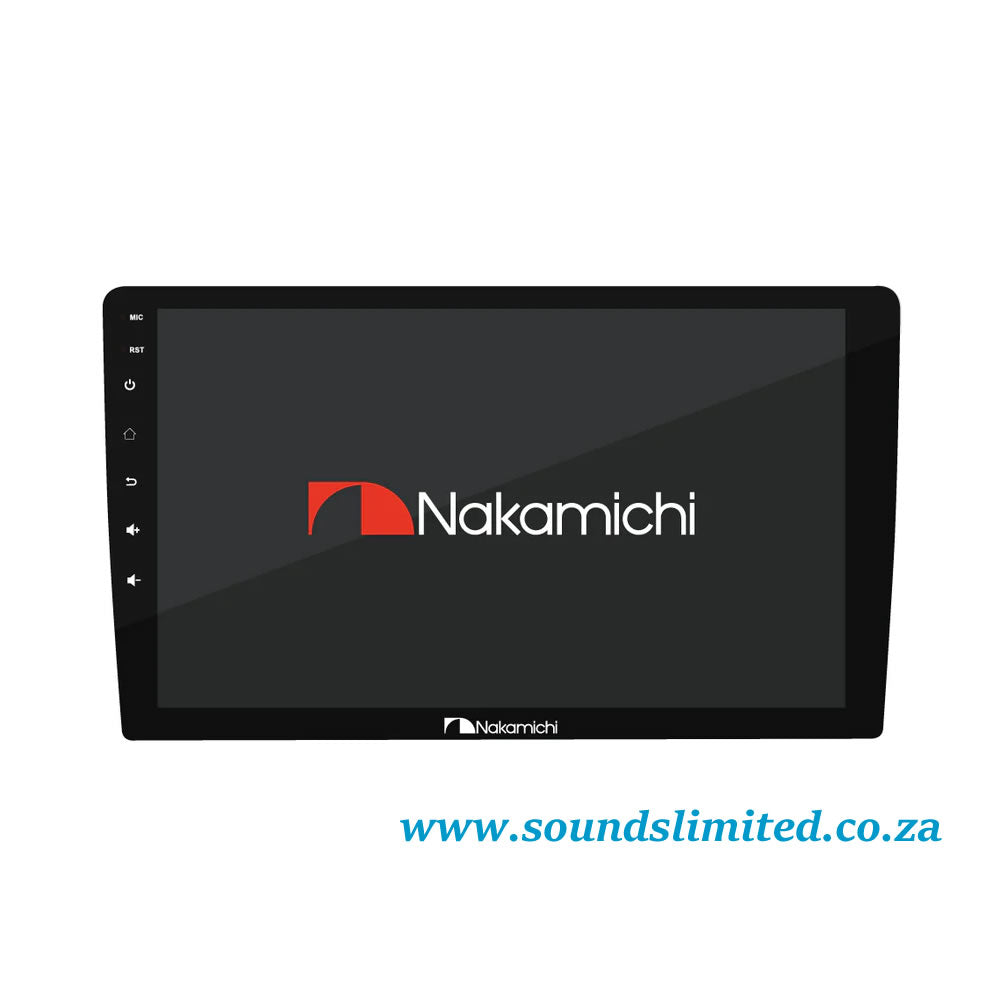

The Nakamichi NAM5260-A9Z is a 9-inch double din car head unit. It operates on an Android-based operating system (NK12.0) with specifications including 2GB of DDR RAM and optional 32GB or 64GB of flash memory. Features Bluetooth 4.2 for wireless communication, enhancing connectivity and media control.



The Nakamichi NAM5260-A9Z is designed to provide a modern multimedia experience in vehicles, allowing users to access navigation, music, and other applications through a large touchscreen interface. This unit is popular among car audio enthusiasts for its user-friendly interface and advanced connectivity options, making it a sought-after accessory for upgrading vehicle entertainment systems.



Specifications

General

Size

9″

Operation Voltage

14.4V(10.5-16V)

Net weight

600g

System

Operating system

NK12.0

DDR

2GB

Flash

32GB

Radio

FM Frequency Range

87.5-108.0MHZ

MW frequency range

522-1620KHZ

Bluetooth

Communication System

BT4.2+EDR

Output

BT standard power level 2

Maximum communication range

5m

Frequency band

2.4GHz

USB

Readable/ Chargeable(5±0.25V/1A)

Audio

Max power

4x50W

Front Output(V)

4V/10KΩ

Pre-output impedance

≤600Ω

Speakers impedance

4-8Ω

TFT Screen

Size

7″

Display Resolution

1024×600

Contrast

500

Brightness

500nit

Video

External Video Input System

NTSC/PAL/SECAM

External Video Input

1VP-P/75Ω

Video Format

H264/ MP4/ AVI/ MKV/ FLV

Audio Format

MP3/APE/AAC/FLAC
