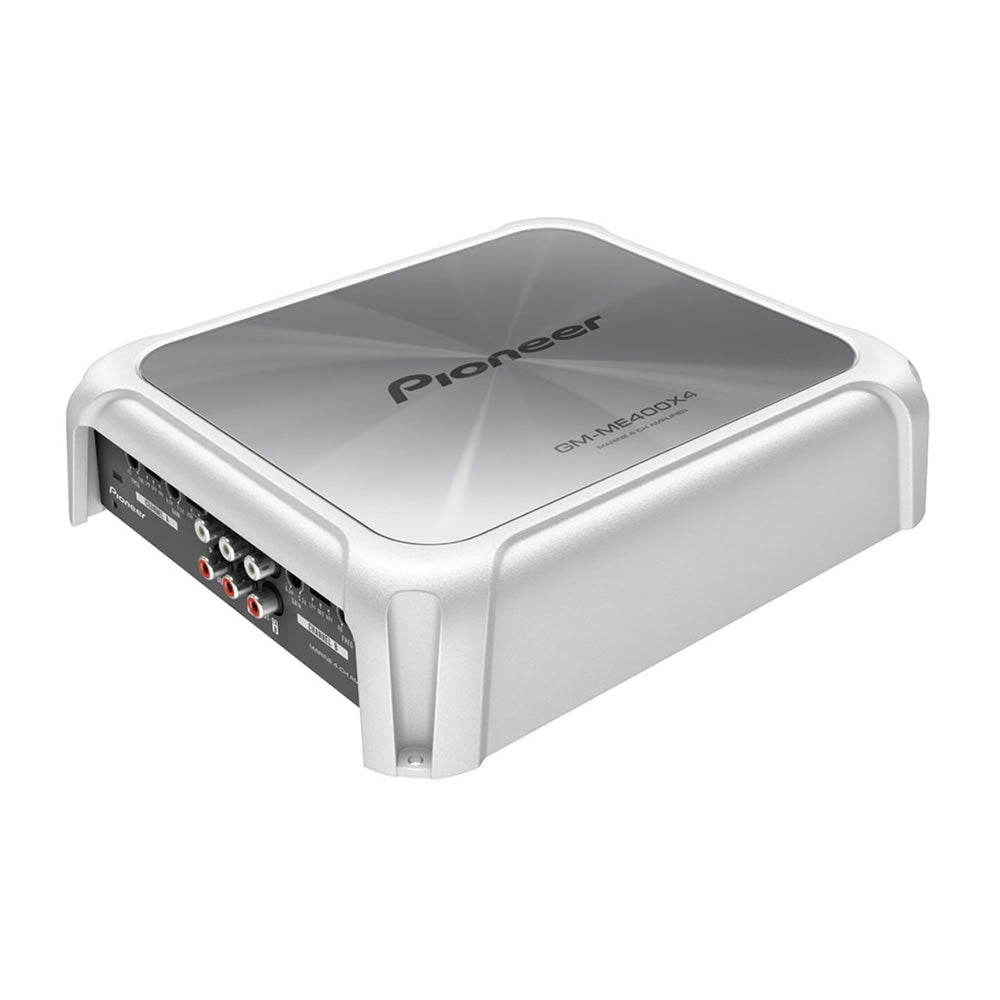

Pioneer GM-ME400X4 Class-D 4-Channel Bridgeable Marine Amplifier

Designed for Marine Use

Conformal coating protects the PCB against corrosion, making it ideal for marine use*.
* Do not install the amplifier in a location exposed to direct sunlight, contact with water/liquids, or excessive heat, humidity or dust.

GENERAL

• RCA Inputs4-CH
• Amplifer ClassCLASS-D
• High Quality Sound Parts
• Hi-Res Certified
• Speaker Level Inputs
• Crossover TypeVariable HPF/LPF
• Bridgeable
• Warranty (must be purchased from an Authorized Pioneer Dealer)1 Year

SPECIFICATIONS

• Continuous Power (RMS) Output at 1 Ohm150W RMS x 4
• Continuous Power (RMS) Output at 2 Ohms120W RMS x 4
• Continuous Power (RMS) Output at 4 Ohms75W RMS x 4
• Continuous Power (RMS) Output - Bridged at 4 Ohms240W RMS x 2
• Frequency Response10 Hz to 35 kHz
• Total Harmonic Distortion (THD)< 0.05% (1 kHz)
• Signal-to-Noise (SN) Ratio95 dB (IHF-A Network)
• Fuse Rating30 A x 2
• Low-Pass Crossover Frequency40 Hz to 500 Hz
• Low Pass Slope (dB/octave)-12 dB/oct.
• High-Pass Crossover Frequency40 Hz to 500 Hz
• Hi-Volt Input Level Control200 mV to 6.5 V
• Terminal TypeBlock
• Load Impedance Allowance (Ohms)1 to 8
• Protection Control System
• Dimensions10-38" x 2-3/8" x 7-7/8"

MARINE

• Rubber Covers IncludedSide Panel Cover, RCA Terminal Cover, FUSE Cover
