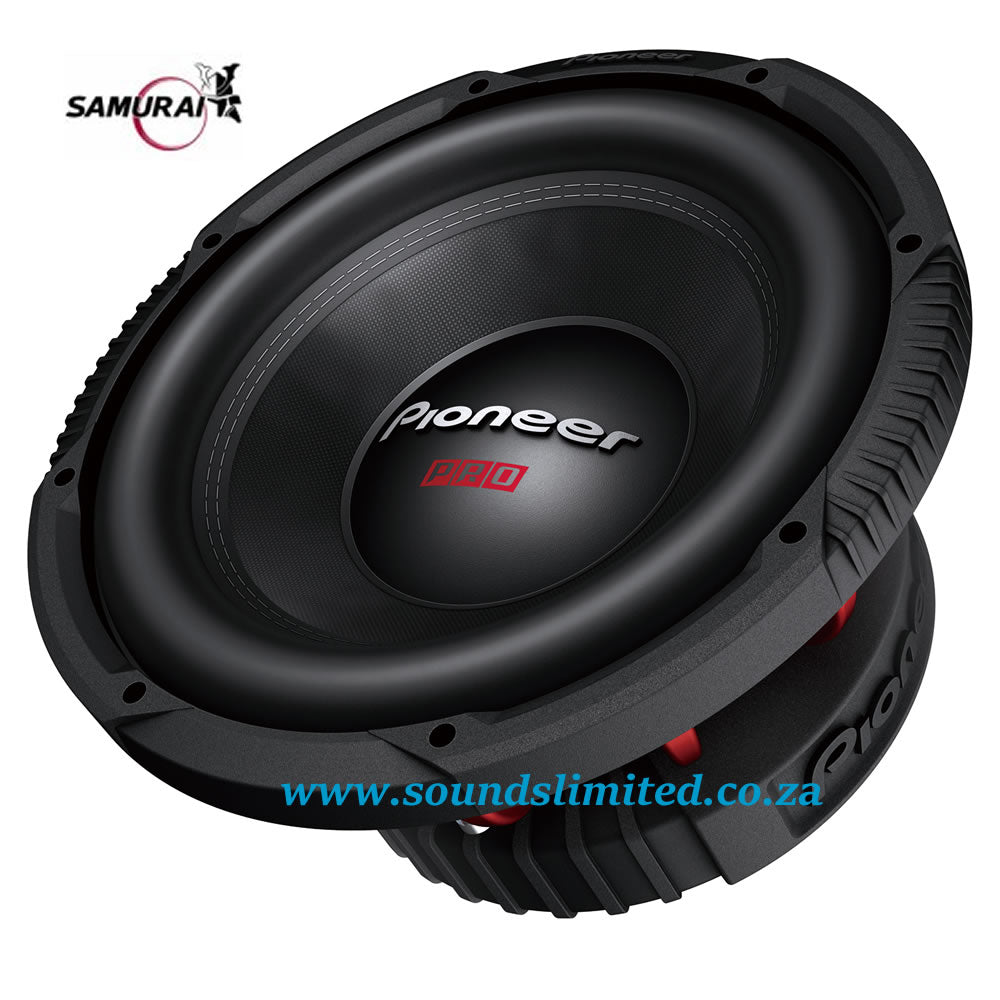

Pioneer Pro TS-W3020PRO PRO Samurai series 12" High Efficiency Subwoofer
Pioneer Pro TS-W3020PRO PRO Samurai series 12" High Efficiency Subwoofer
Regular price
R 3,495.00
Regular price
Sale price
R 3,495.00
Taxes included.
Quantity
Couldn't load pickup availability
Pioneer Pro TS-W3020PRO PRO Samurai series 12" High Efficiency Subwoofer
Super Power !
PRO Samurai series TS-W3820PRO subwoofer has a nominal power 1800 W and double coil with impedance 2 + 2 ohms. The wide stitched-reinforced urethane surround provides long cone stroke and a secure fit at high volumes. The 4-layer copper-clad aluminum voice coil allows to achieve weight reduction and high sensitivity. The high quality aluminum basket construction dissipates heat away from the voice coil. Big double magnet provides high power.
Specifications
SamuraiThe Samurai series of loud speakers is designed to build loud systems with high sound pressure. They are represented by two subwoofers, 30 and 38 cm, which are able to work with high volume levels and provide deep bass.
Full specifications
Main Features
| Samurai | |
| PRO Pioneer Reference for Open Show | |
| Size | 30 cm |
| Type | Subwoofer |
| Maximum power | 3500 W |
| Continuous Power Output | 1800 W |
| Frequency response | 20 Hz to 200 Hz (In-Car) |
| Sensitivity | 86 (1 W/In-car) dB |
| Impedance | 1 Ω or 4 Ω |
| Dual Voice Coil (DVC) | |
| Mounting Depth | 154 mm |
| Woofer Cut-Out Hole | Φ282 mm |
| Woofer material | Paper |
| Surround | Urethane |
| Spider | Polyester Fibre |
| Voice Coil type | 4-layer Long Copper |
| Voice Coil bobbin type | Aluminium |
| Terminals | Push |
| Magnets | Ferrite |
| 30cm / 12" | |
| Recom. Enclosure | 35 (Sealed Enclosure) 50 (Ported Enclosure) |
| Recom. Enclosure | 1.24 (Sealed Enclosure) 1.77 (Ported Enclosure) |
| Weight | 10.9 (Excluding accessories) kg |
| Dimensions | Φ322 x 180 mm |
| Accessories | Subwoofer mounting screws |
Thiele/Small Parameters
| Qts | 1.3 |
| Fs | 47.9 Hz |
| Vas | 0.29 |
| Vas | 8.30 |
| Xmax | 22.8 |
