Pioneer

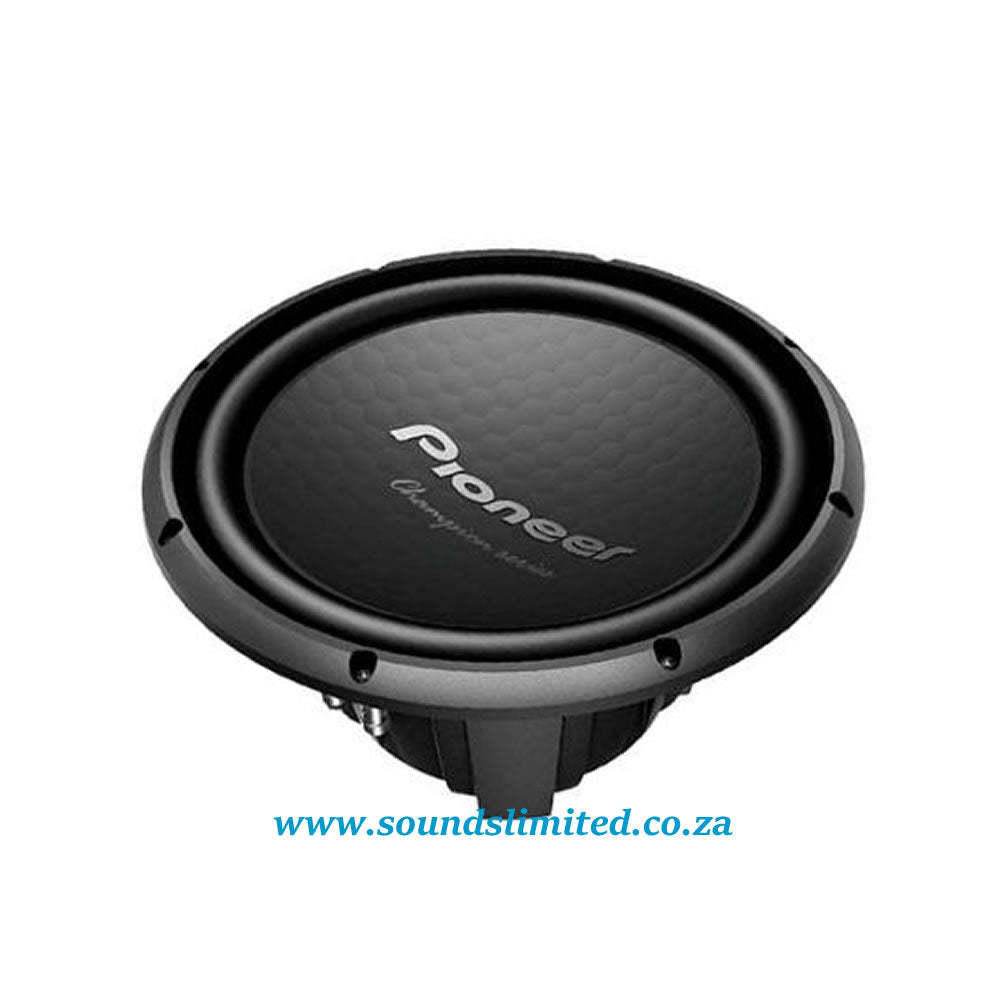

Pioneer TS-W32S4 30 cm / 12" Champion Series Component Subwoofer, 1500 W
Pioneer TS-W32S4 30 cm / 12" Champion Series Component Subwoofer, 1500 W
Regular price
R 1,090.00
Regular price
Sale price
R 1,090.00
Taxes included.
Quantity
Couldn't load pickup availability
DEEP & LOUD. THIS IS THE CHAMPION SOUND!
Get deep and loud powerful bass in your car – from the pedigree of world record-breaking Champion Series subwoofers.
The TS-W32S4 Champion Series subwoofer features a light and rigid seamless cone, which delivers superior reliability, durability and rock solid bass, from it's lightweight yet ultra-rigid structure. All of these combined gives you high power handling and high endurance at high sound pressure levels.
TS-W32S4 is a 30 cm / 12" subwoofer, suitable for enclosed use, delivering 1500 W Maximum Power and 400 W Nominal Power.
Specifications
CarSoundFit App Car sound simulator application for an improved in-car sound experience
Full specifications
Main Features
| CarSoundFit App | |
| Size | 30 cm |
| Type | Component Subwoofer |
| Maximum power | 1500W |
| Continuous power output | 400W |
| Frequency response | 22 Hz to 1.6 kHz |
| Sensitivity | 90 dB |
| Impedance | 4 Ω |
| Mounting Depth | 146 mm |
| Woofer Cut-Out Hole | 281 mm |
| Woofer material | Paper |
| Voice Coil type | Single Voice Coil |
| Voice Coil bobbin type | Aluminium |
| Terminals | Push |
| Magnets | FERRITE |
| 30cm / 12" | |
| Recom. Enclosure | 35.4 L |
| Recom. Enclosure | 1.25 ft3 |
| Weight | 3.76 kg |
| Dimensions | 318 (Diam.) x 163 mm |
Thiele/Small Parameters
| Qts | 0.61 |
| Fs | 30 Hz |
| Vas | 2.04 ft3 |
| Vas | 57.7 L |
| Xmax | 11.6 mm |
