SounDigital 3000.1D-1 EVO Amplifier 1x3000w RMS 1Ohm
SounDigital 3000.1D-1 EVO Amplifier 1x3000w RMS 1Ohm
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.

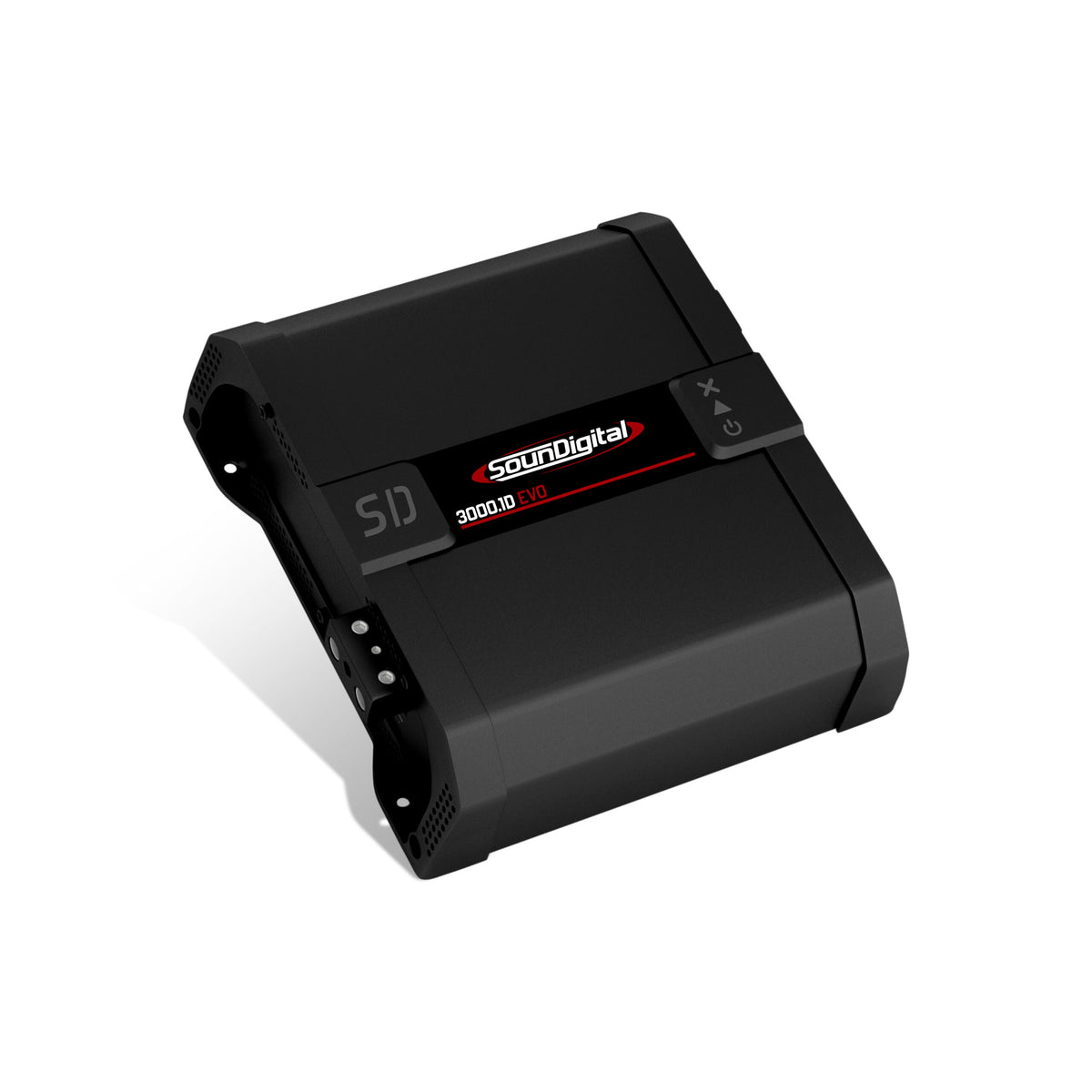

SounDigital 3000.1D-1
1ohm EVO Amplifier 1x3000w RMS
THE NEW EVO LINE is here to stay and has every resource to produce the perfect sound. Quality, efficiency, stability, onboard crossover and innovative design.
TECHNICAL SPECIFICATIONS
3000.1D 1Ω
Power @ 12.6V @ 1Ω: 1 x 3000 W RMS
Power @ 12.6V @ 2Ω: 1 x 1650 W RMS
Power @ 12.6V @ 4Ω: 1 x 908 W RMS
Power @ 14.4V @ 1Ω: 1 x 3918 W RMS
Power @ 14.4V @ 2Ω: 1 x 2155 W RMS
Power @ 14.4V @ 4Ω: 1 x 1185 W RMS
Operating Voltage: 9V – 16V
Current Draw (Max): 305A
Current Draw (Music): 153A
THD (10% Rated Power): 0.025%
Damping Factor: >1000
SNR: 84dB
Frequency Response: 5 Hz – 25 kHz
Crossover HPF: 5 Hz – 60 Hz (12 dB/oct)
Crossover LPF: 80 Hz – 25 kHz (24 dB/oct)
Bass Boost: 0 – 12dB
Bass Boost Range 35Hz – 70Hz
Recommended Fuse: 150 A (Music) / 2 x 250 A (SPL)
Dimensions (L x W x H): 8.62 x 9.06 x 2.8 in
