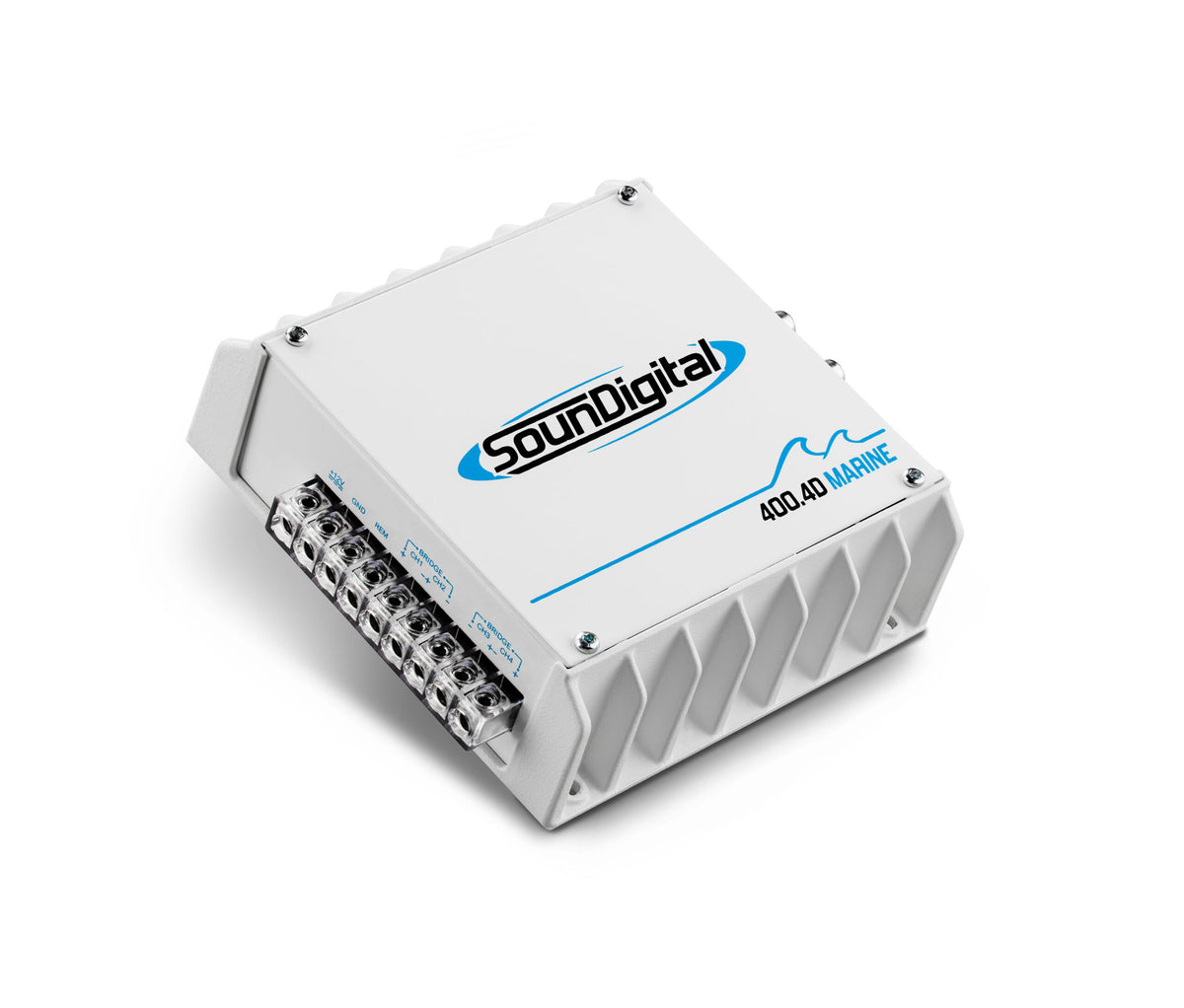

SounDigital 400.4D Marine Amplifier 4x55w RMS (Mini Size)
SounDigital 400.4D Marine Amplifier 4x55w RMS (Mini Size)
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.
SounDigital
Model: 400.4D Marine
Mini Size Amplifier
The Marine Line offers to same incredible performance of the EVO Line, but with all the necessary characteristics for the marine environment.
TECHNICAL SPECIFICATIONS
400.4D Marine
Power @ 12.6V @ 2Ω: 4 x 100 W RMS
Power @ 12.6V @ 4Ω: 4 x 55 W RMS
Power @ 12.6V @ 8Ω: 4 x 30 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 200 W RMS
Bridge Power @ 12.6V @ 8Ω: 2 x 110 W RMS
Power @ 14.4V @ 2Ω: 4 x 131 W RMS
Power @ 14.4V @ 4Ω: 4 x 72 W RMS
Power @ 14.4V @ 8Ω: 4 x 40 W RMS
Bridge Power @ 14.4V @ 4Ω: 2 x 261 W RMS
Bridge Power @ 14.4V @ 8Ω: 2 x 144 W RMS
Working Voltage: 9V – 16V
Current Draw (Music): 20A
Current Draw (Max): 40A
Recommended Fuse: 20A
THD + N – (rated power): 0.08%
THD + N – (50% of rated power): 0.006%
THD + N – (10% of rated power): 0.009%
Damping Factor: <200
SNR: 88dB
Frequency Response: 5Hz – 20kHz
Input Sensitivity: 0.5V to 6V
HPF: 80Hz
LPF: 80Hz
Dimensions (L x W x H) 5.87 x 5.43 x 1.81 in
Dimensions (L x W x H) 14.4 x 13.8 x 4.6 cm
Weight: 0.7 kg
