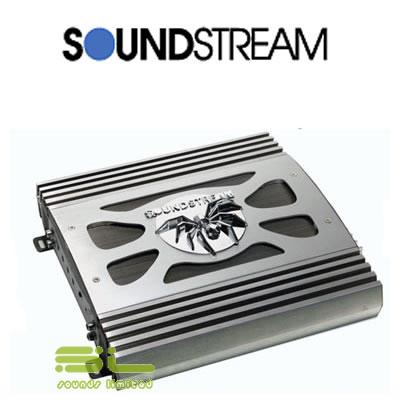

Soundstream PCA 2.260 2ch amplifier

Soundstream Picasso PCA2.260 260 Watt 2 Channel Amplifier

Picasso amplifiers exude Performance and Quality with 2.5 to 1 power supply ratios and superior damping factors for excellent woofer control under high-stress applications. With both class "A/B" and class "D" amplifiers to fit any application, Picasso is the answer to loud and clear sound reproduction.

Class A/B Features
• Fully regulated MOSFET power supplies
• PWM circuitry
• Tri-guard amplifier protection
• IDI (Intelligent Distress Indicator) gives a visual
• indication of the amplifiers protection status
• Line Outputs
• Bi-linear selectable crossovers for inputs and
utputs (Hi/Full/Low)
• Continuously variable high and low-pass
rossovers
• Variable subwoofer equalizer
• Phase inversion switch (0 - 180º)
• OEM floating ground input
• Platinum 4-gauge power connectors
• Tri-mode operation

Class D Features
• TST (Twin Stack Technology) Allows 2 amplifiers to drive 1 voice coil, effectively doubling the power
• High quality FR-4 circuit board
• Class D circuitry
• Continuously variable low-pass crossover
• Continuously variable subsonic filter
• Variable subwoofer equalizer
• Platinum 2-gauge power connectors
• Accepts up to 16VDC power input
• ohm stability
• Includes Remote Bass Boost Control

Specifications
Output @ 4 ohm:
80 x 2
Output @ 2 ohm:
130 x 2
Bridged @ 4 ohm:
260 x 1
THD:
0.02%
Freq. Resp.
10 - 30k
S/N Ratio
>97dB
Damping Factor:
>200
Input Sens.
0.2 - 6.0V
Crossover Slopes:
12dB
Crossover Freq. HP:
50 - 600
Crossover Freq. LP:
50 - 150
Subwoofer EQ:
0 - 18dB
Subwoofer EQ Freq:
40 - 120Hz
Dimension
11 x 2.5 x 11
