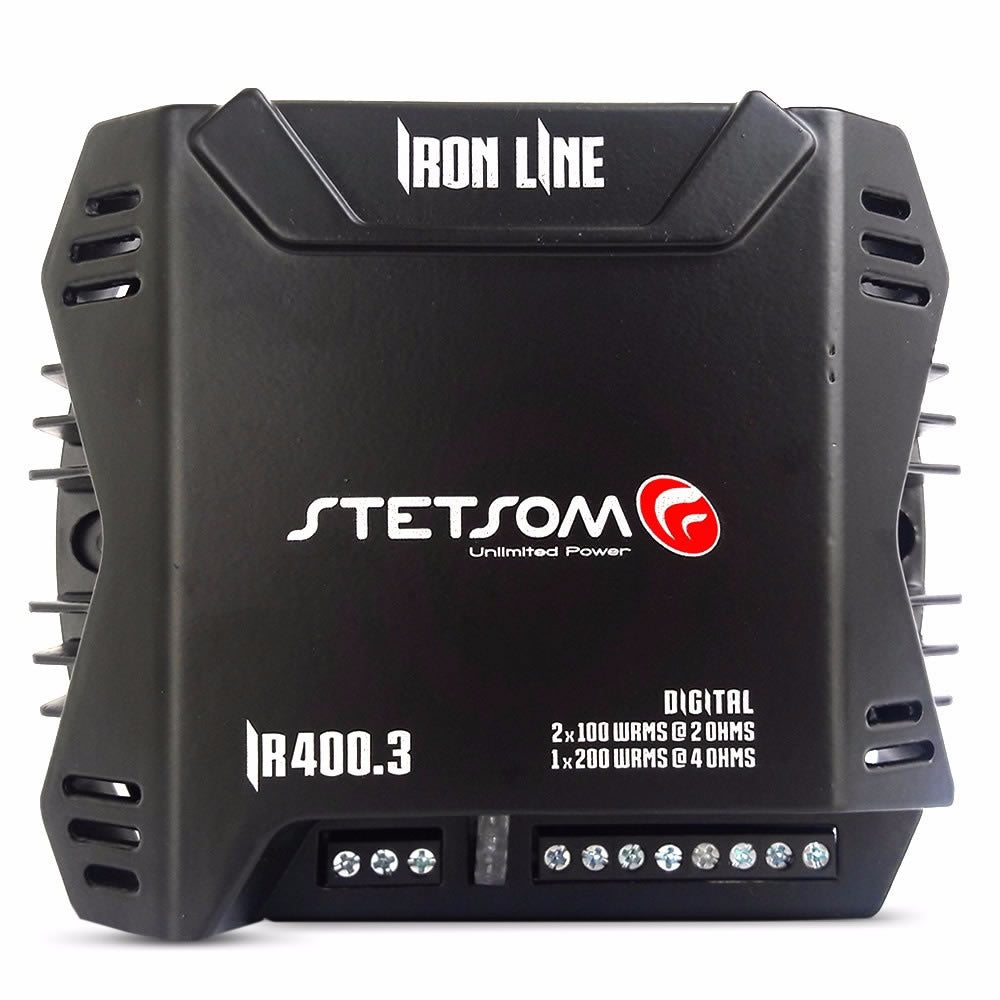

Stetsom IR400.3 - Iron Line Micro Amplifier
Stetsom IR400.3 - Iron Line Micro Amplifier
Couldn't load pickup availability
Stetsom IR400.3
Description
Stetsom IR400.3 has 3 channels and is ideal for internal sound, can be installed with an Original Kit or Midsize Speakers + 1 SubWoofer.
It has 2 channels of 100W RMS at 2 Ohms + 1 Channel of 200W RMS at 4 Ohms for the SubWoofer.
Can be installed with wire input (Low impedance) or RCA (High impedance) input.
The SubWoofer exclusive Level control features with Enhanced Source for fuller subwoofer.
And it has the highest frequency response in the market, providing high fidelity sound in the middle and treble with incomparable sound.
Design and Robustness without equal, because it is developed in high performance aluminum.
It has the Safety Energy technology providing very high efficiency and low consumption.
Technical Specifications
| Features | IR 400.3 |
|---|---|
| Number of Channels | 3 |
| RMS Power at 2 Ohm 13.8V | 2 x 100W RMS (STEREO) |
| RMS Power at 4 Ohm 13.8V | 1 x 200W RMS (SUB) |
| Supply Voltage | 9,5 ~ 15Vdc |
| Frequency Response | 90Hz ~ 22KHz (STEREO) / 10Hz ~ 90Hz (SUB) |
| Crossover Low Pass | 90Hz @ 12dB/8ª |
| Crossover High Pass | 90Hz @ 6dB/8ª |
| Signal to Noise | > 90 dB |
| Harmonic Distortion | > 0,03 % THD |
| Input Sensitivity | 220mV (RCA) / 1,4V (FIO) |
| Input Impedance | 42K OHMS (RCA) / 1K OHMS (FIO) |
| Impedance Output | 2 OHMS (STEREO) / 4 OHMS (SUB) |
| Consumption with Signal Musical | 16A |
| Consumption with Signal Bass | 32A |
| Dimensions (H x W x D) mm | 52 x 127 x 116 mm |
| Weight Kg | 0,550 Kg |
