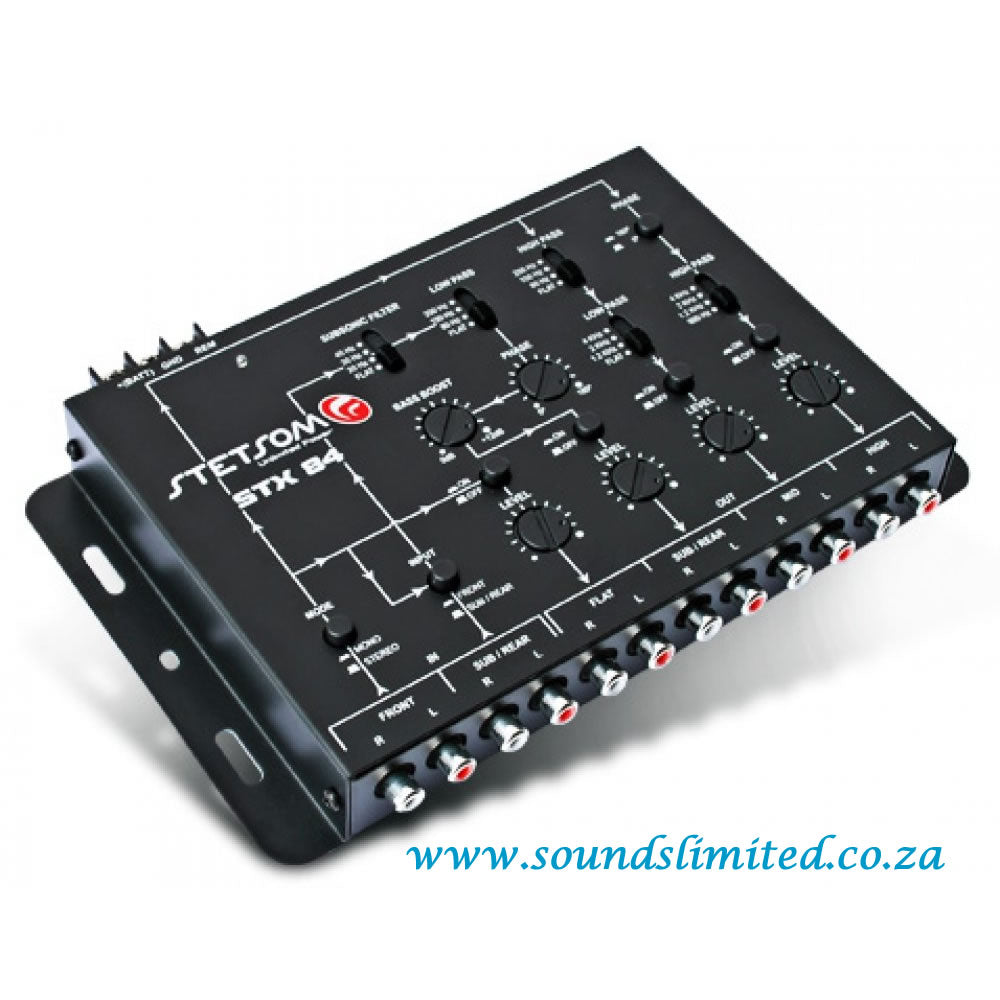

Stetsom STX84 - Crossover
Stetsom STX84 - Crossover
Call for price
Taxes included.
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.
Stetsom STX84 - Crossover
Technical Specifications
| Features | STX84 |
|---|---|
| Via High | 12 dB/8ª (4KHz/2KHz/1,2KHz/900Hz) PHASE 0º / 180º |
| Via Mid | 12 dB/8ª LO FREQ (4KHz/2KHz/1,2KHz/FLAT) HI FREQ (250Hz/150Hz/80Hz/FLAT) |
| Via Low | LO FREQ (250Hz/150Hz/80Hz/FLAT) Subsonic Filter 24 dB/8ª (20Hz/30Hz/40Hz/FLAT) PHASE 0º e 180º (20Hz a 200Hz) Bass Boost (25Hz - 110Hz) (0 - +12dB; 50Hz) |
| Maximum Output Voltage | 9V RMS |
| Maximum Input Voltage | 4V RMS |
| Signal to Noise | >90dB |
| Input Impedance | 10K OHMS |
| Harmonic Distortion | < 0,02% THD |
| Channel Separation | > 80dB |
| Frequency Response | 20Hz - 200Khz |
| Supply Voltage | 10V - 16V DC |
| Current Consumption | 0,25A MAX |
| Impedance Output | 50 OHMS |
| Dimensions (H x W x D) mm | 33 x 236 x 160 mm |
| Weight Kg | 700g |
