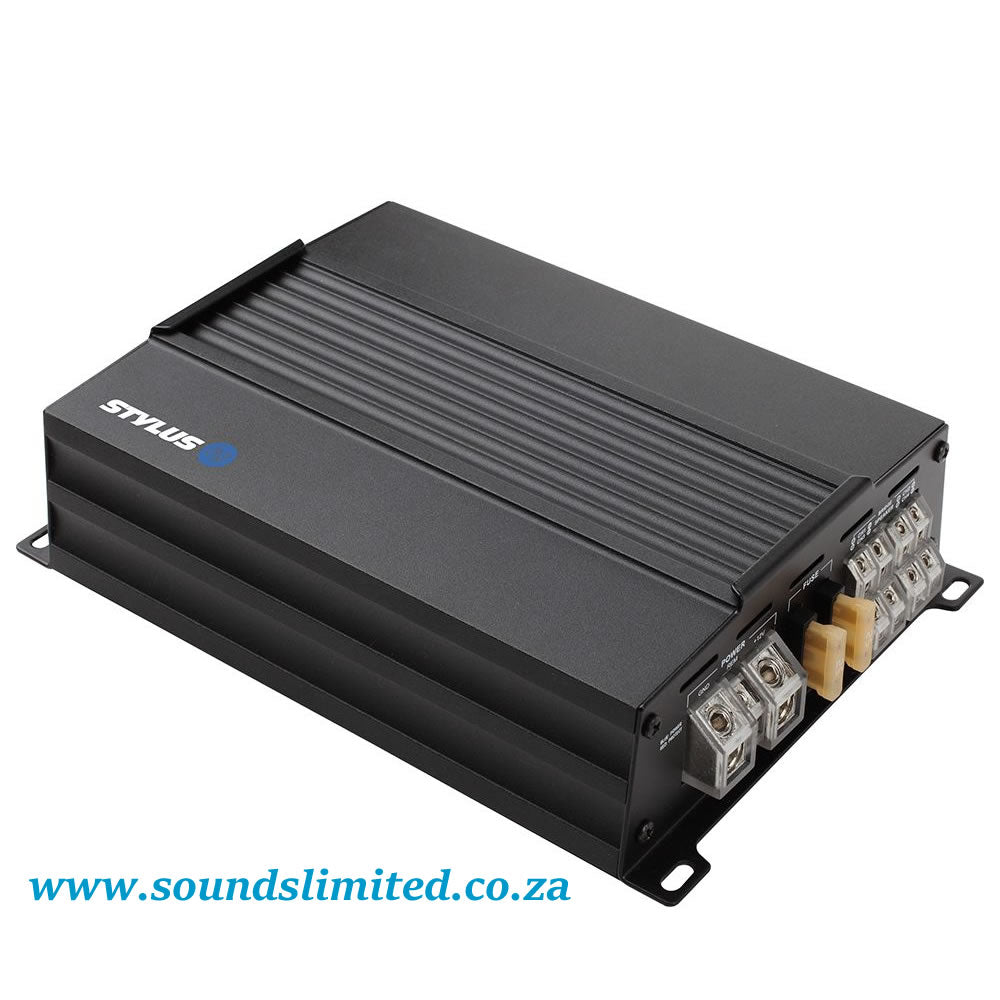

Stylus AV 5 Channel Class D Amplifier 10 000W Peak 90w RMS x4 + 200w RMS x 1 STY-D5.120

Power your entire car audio system with the Stylus AV 5-Channel Class D Amplifier. Delivering up to 10 000W peak power, this compact yet powerful amplifier is perfect for driving speakers and subwoofers with precision. Enjoy flexible tuning options with variable high/low pass filters and bass boost controls for crisp, customizable sound.

Key Features:

• Peak Power Output: 10000W (3000 Cycles)
• RMS Power Output:

90W x 4 + 200W x 1 @ 4

120W x 4 + 320W x 1 @ 2

240W x 2 bridged + 200w x 1 @ 4

• High-Pass & Low-Pass Filters (HPF/LPF): 12dB/Octave, variable from 30Hz – 320Hz
• Selectable Bass Boost: 0dB, 6dB, or 12dB
• High Signal-to-Noise Ratio: > 94dB for clear, distortion-free sound
• Total Harmonic Distortion (THD): 0.1% @ 1 Watt
• Wide Frequency Response: 20Hz – 20kHz ( 1dB)
• Sensitivity Level: 200mV – 6V for versatile input compatibility
• Compact Design: 280 x 148 x 53 mm
• Compatible with Low-Level (RCA) & High-Level (Speaker) Inputs

Ideal for powering your mids, highs, or bridging for subs, the Stylus AV 5-Channel Class D Amplifier delivers reliable, dynamic sound for any build.

What’s in the box
1x Stylus AV D5.120 Amplifier
1x Instruction Manual
