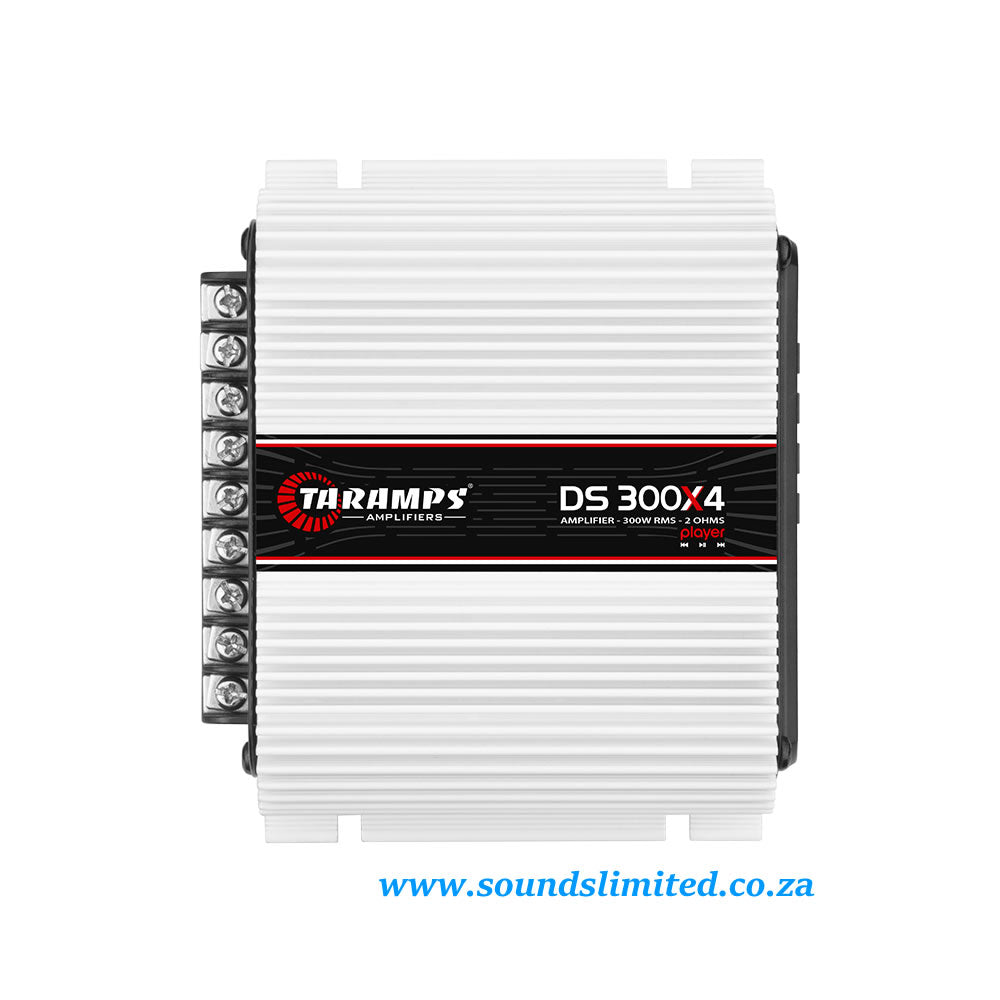

Taramps DS 300X4 Amplifier Module Class D (4 Channels 75 Watts RMS)
Taramps DS 300X4 Amplifier Module Class D (4 Channels 75 Watts RMS)
Call for price
Taxes included.
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.
Taramps aims to always serve its customers with the highest technology and versatility. That was how the DS300X4 PLAYER came about, an amplified module with the built-in sound player. It’s a stereo product with original remote control and with several audio inputs, such as Bluetooth. It has 4 channels of 75 Watts RMS, totaling 300 Watts RMS and is widely used for flywheel advertising, however it’s a FULL RANGE amplifier module, serving the most varied frequencies, in the right measure for you.
Product videos
Technical information
| Operation class | Class D |
|---|---|
| Number of Channels | 04 |
| Maximum power | @ 13.8 VDC - 2 Ohms: 300 Watts RMS (4 x 75W RMS) @ 13.8 VDC - 4 Ohms: 180 Watts RMS (4 x 45W RMS) 2 Bridged Channels - 4 Ohms: 300 Watts RMS (2 x 150W RMS) |
| Input Sensitivity | 250mV |
| Signal to Noise Ratio | >90dB |
| Frequency Response | 45Hz ~ 20KHz (-3dB) |
| Output Impedance | 2 ohms |
| protection system | Output Short Circuit |
| Min. Supply Voltage | 9 VDC |
| Maximum Power Supply Voltage | 16 VDC |
| Consumption at rest | 0.60A |
| Maximum music consumption | 14A |
| Maximum consumption in sinusoidal signal | 28A |
| Dimensions (WxHxD) | 5.43" x 1.93" x 4.72" (138 x 49 x 120mm) |
| Weight | 1.36lb (0,62kg) |
