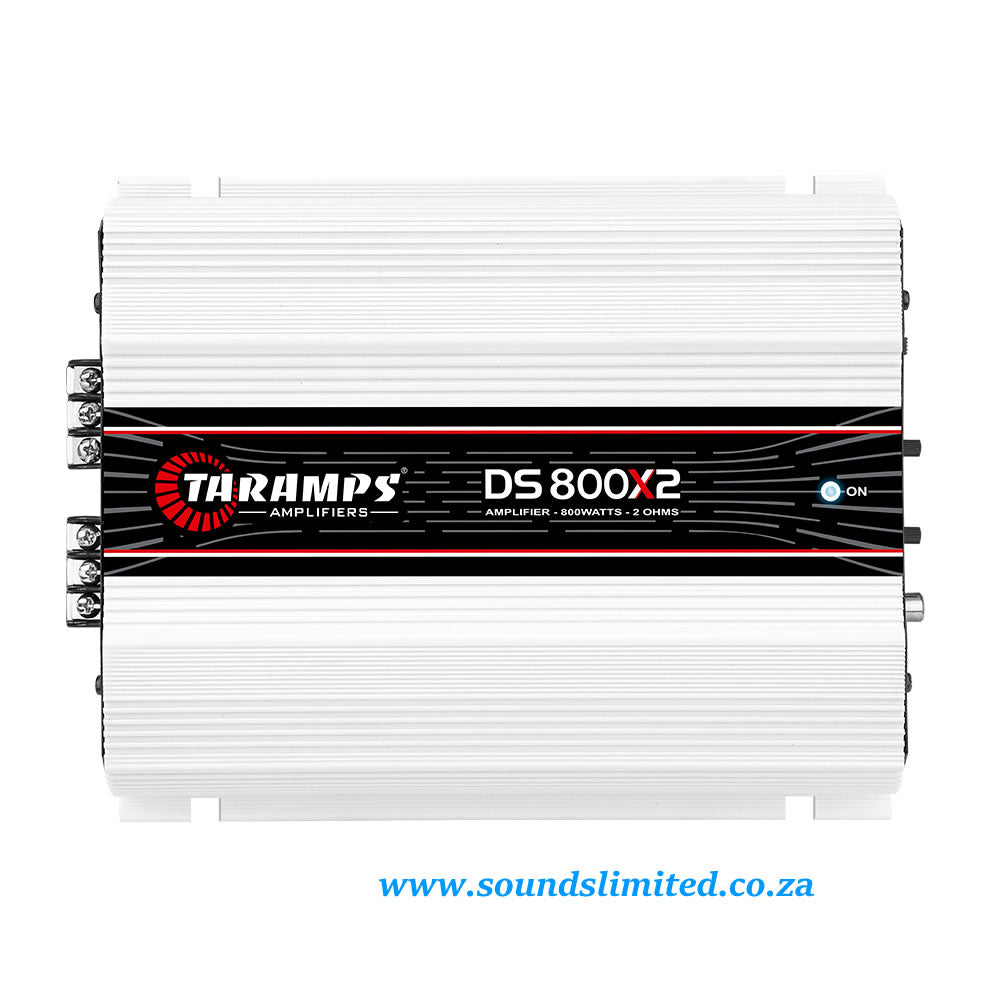

Taramps DS 800X2 Amplifier Module Class D (2 Channels 400 Watts RMS)
Taramps DS 800X2 Amplifier Module Class D (2 Channels 400 Watts RMS)
Call for price
Taxes included.
Price on request. Call, WhatsApp or send an enquiry and we'll come back to you with a quote.
Description
The DS800X2 amplifier is a Taramps module that was developed for those looking to enjoy bass, midrange and high with definition and technology for the automotive sound system. It is stereo, with a maximum power of 800 Watts RMS, with an impedance of 2 ohms, with 2 channels of 400 Watts RMS each or 1 channel connected in BRIDGE with 800 Watts at 4 ohms. The DS 800X2 is FULL RANGE and reproduces all the frequencies that are right for you.
Technical information
| Operation class | Class D |
|---|---|
| Number of Channels | 02 |
| Maximum power | @ 12.6 VDC - 2 OHMS: 800WRMS (2 x 400WRMS) @ 12.6 VDC - 4 OHMS: 500WRMS (2 x 250WRMS) @ 12.6 VDC - 8 OHMS: 240WRMS (2 x 120W) 1 Bridged CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS) |
| Input Sensitivity | 250mV |
| Signal to Noise Ratio | >96dB |
| Frequency Response | 10Hz to 22KHz (-3dB) |
| Crossover high pass (HPF) | 80Hz to 2.2KHz (-6dB/8a) Variable |
| Crossover low pass (LPF) | 80Hz (-12dB/8ª) Fixed |
| Efficiency | 83% |
| Input Impedance | 18K Ohms |
| Output Impedance | 2 Ohms |
| protection system | output overload |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | @12.6 VDC: 0.85A |
| Maximum music consumption | @12.6 VDC: 38A |
| Maximum consumption in sinusoidal signal | 77A |
| Dimensions (WxHxD) | 7.24" x 2.13" x 7.48" (173 x 52 x 227mm) |
| Weight | 3.04lb (1,43kg) |
